Boss PX-1 Plugout FX
Boss PX-1 Plugout FX
Boss PX-1 Plugout FX
Boss PX-1 Plugout FX





Boss PX-1
Plugout FX



EAN Code: 4957054521578
Cena (kom) :
310.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

Timeless Effects, Infinite Inspiration

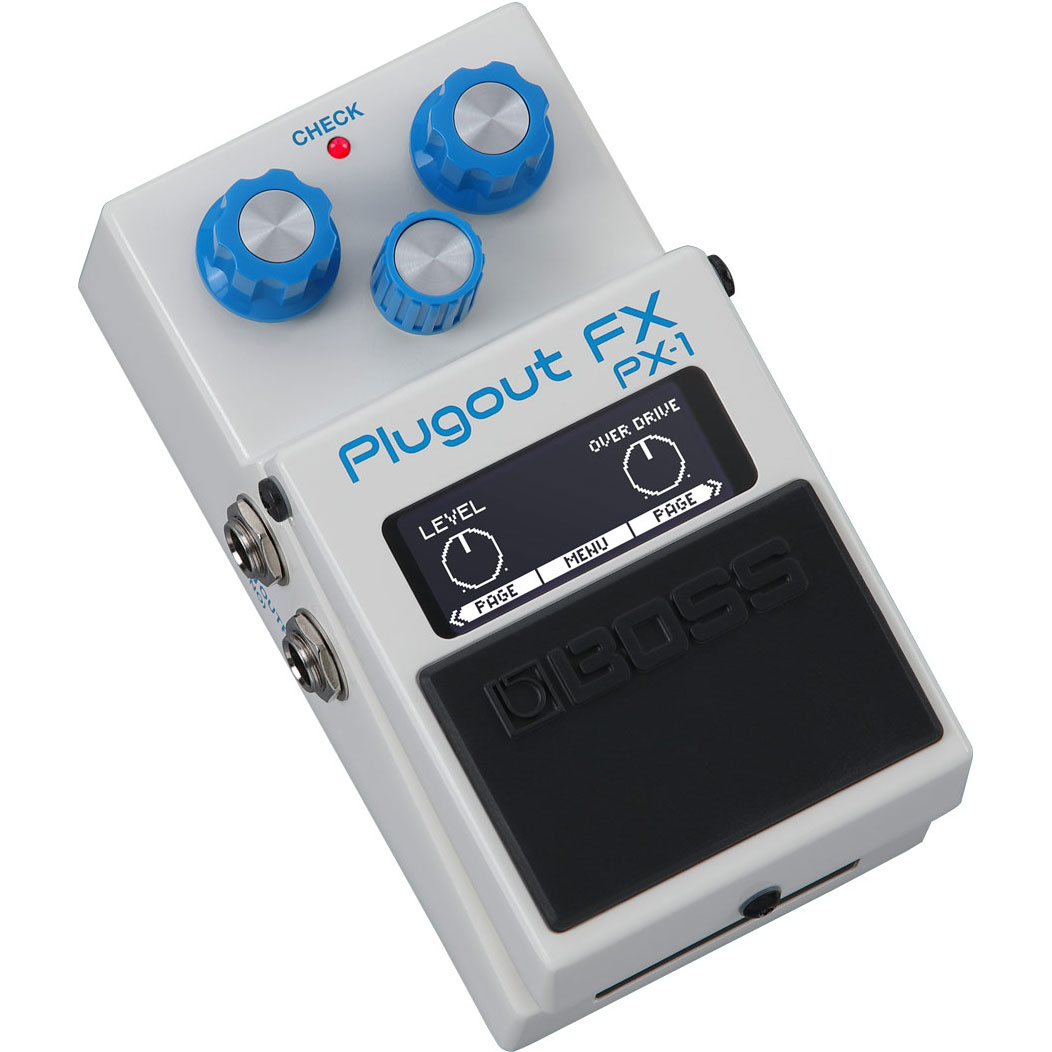

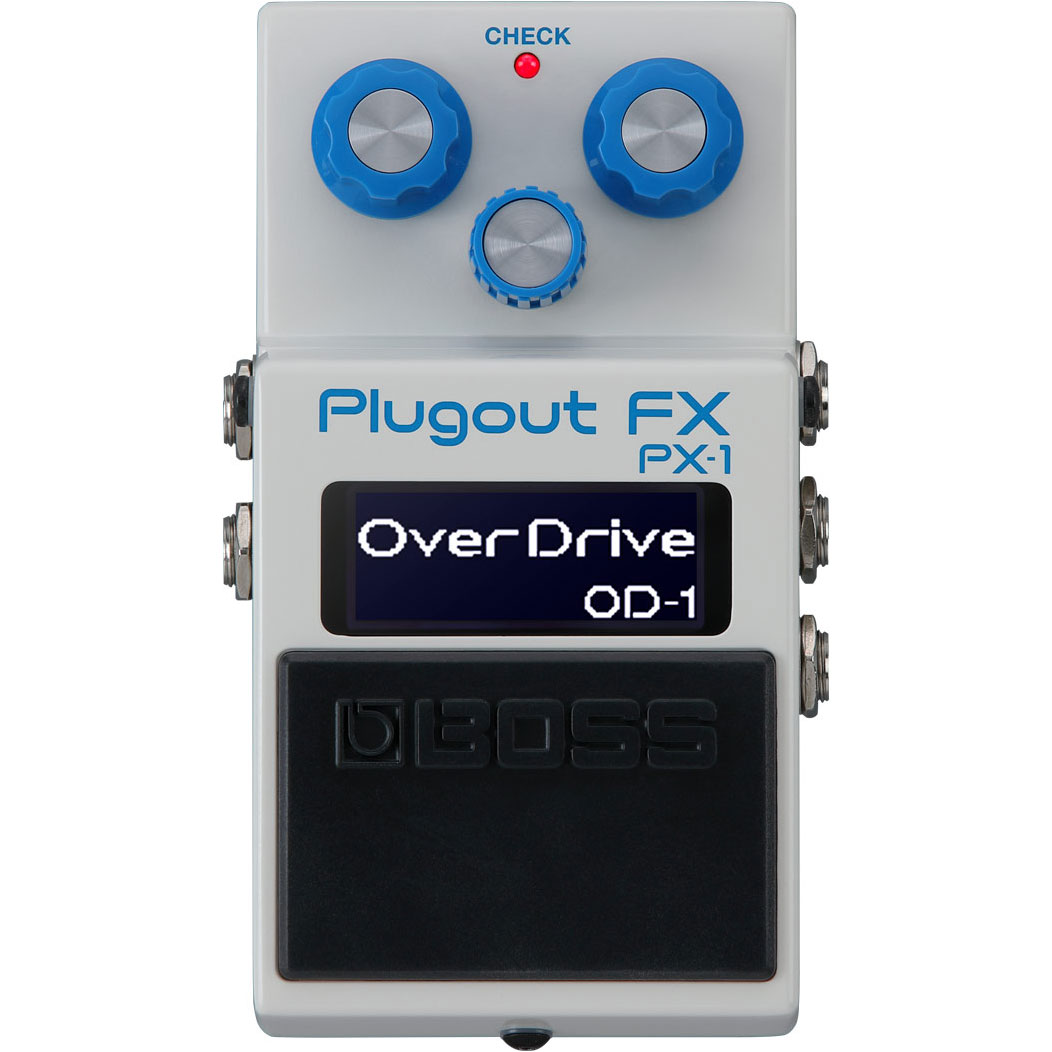

The PX-1 Plugout FX is an innovative hardware platform that captures the timeless BOSS compact pedal experience in one versatile pedal. This convertible stomp holds multiple authentic effect recreations from the historic BOSS lineup, providing endless fuel for every creative journey. With the PX-1 in your setup, exploring the vast and influential world of BOSS compact pedals has never been easier.

Features

  • Timeless BOSS compact pedals in an innovative hardware platform
  • Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types
  • Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2
  • Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app
  • Authentic tone and response, realized with powerful DSP dedicated to one effect at a time
  • Stereo input and output
  • Support for external control with footswitches or an expression pedal
  • Tap tempo support and TRS MIDI input for MIDI clock sync
  • Bluetooth® and USB-C® connectivity for loading effect models and more
  • Runs on included AC adaptor or USB bus power
  • BOSS five-year warranty

For optimal performance, stay up to date with the current PX-1 system software .

Download “BOSS Effect Loader” for iOS
Download “BOSS Effect Loader” for Android



A Universe of Musical Colors

Since 1977, BOSS compact pedals have inspired generations of musicians around the world. Over 140 unique models have been produced, over 19 million units have been sold, and many have remained in non-stop production for decades. From vintage classics and go-to workhorses to rare and specialty effects, the PX-1 puts the diverse BOSS compact pedal range at your command.

Authentic Recreations

Backed by newly developed BOSS algorithms, each effect in the PX-1 delivers the authentic sound and response of the pedal it's based on. Every detail is modeled with stunning accuracy, thanks to a powerful DSP engine dedicated to recreating the sound of a single effect at a time. Dial in tones fast with the familiar knob interface you're used to with BOSS compacts, supported by an onboard display for current parameters and internal settings.

Modern Flexibility

The PX-1 supports external control with one or two footswitches or an expression pedal. Use the Swap function to switch between two effects. Or assign nearly any parameter for real-time expressive control while performing. Stereo I/O provides flexible connectivity and enhanced sound for models that support stereo operation, while tap tempo and MIDI clock sync help you get the most out of time-based effects.

Core Effects

The PX-1's permanent library features eight famous BOSS pedals, including the three models from the 1977 debut and iconic drive pedals like the DS-1 and SD-1. Every model has a “1” designation, indicating that it's the first of its type within the BOSS timeline.

Eight Additional Effects

The following eight effects are also included with the PX-1, and you can load them into the pedal's eight user locations. After registering your pedal with a free Roland Account, download the effects into the PX-1 using the BOSS Effect Loader app.

An Ever-Expanding Universe

Many more PX-1 effects will be added over time, and each new effect will be available with a low-cost Model Pass within the BOSS Effect Loader app.

Add More Effects to the PX-1 with Model Passes

A Model Pass is a license for adding a new effect to the PX-1 Plugout FX compact pedal. Model Passes are available for purchase within the BOSS Effect Loader app for $9.99 each* starting in January 2026. Effects can be loaded into the PX-1 from the app via a Bluetooth® or USB-C® connection. Scheduled for January 2026 OD-2 TURBO OverDrive
DM-2 Delay
DC-2 Dimension C Audition Effects in the PX-1 Before committing to a Model Pass purchase, you can try out effects with demo versions that introduce a small audio gap every 30 seconds.

Timeless BOSS Effects for Your DAW

The same PX-1 effects are also available for computer music production with the BOSS Effects Pedals plug-in on Roland Cloud, and six months of Roland Cloud Ultimate membership comes with the pedal. This gives you complete access to the full BOSS Effects Pedals library, JC-120 Jazz Chorus and RE-201 Space Echo plug-ins, and many other powerful creative tools.

Learn More About Roland Cloud
Learn More About the BOSS Effects Pedals Plug-In









Specifications
Sampling Frequency
48 kHz
AD Conversion
24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
32 bits
Nominal Input Level
INPUT A (MONO), INPUT B: -20 dBu
Maximum Input Level
INPUT A (MONO), INPUT B: +7 dBu
Input Impedance
INPUT A (MONO), INPUT B: 1 MΩ
Nominal Output Level
OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum Output Level
OUTPUT A (MONO), OUTPUT B: +7 dBu
Output Impedance
OUTPUT A (MONO), OUTPUT B: 1 kΩ
Recommended Load Impedance
OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
Bypass
Buffered bypass
Controls
LEFT knob
CENTER knob
RIGHT knob
Pedal switch
Indicator
CHECK indicator
Display
Graphic LCD 128 x 48 dots

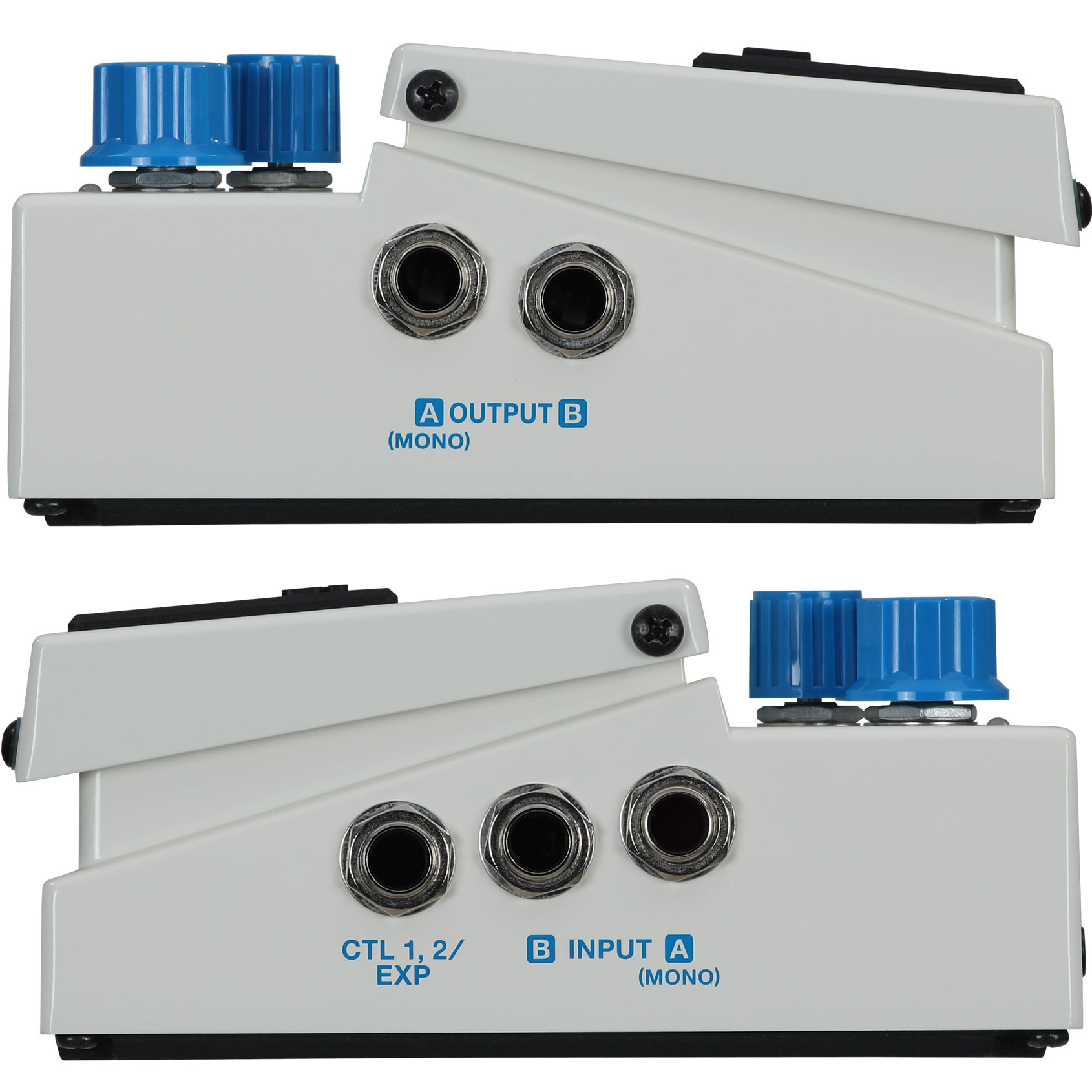

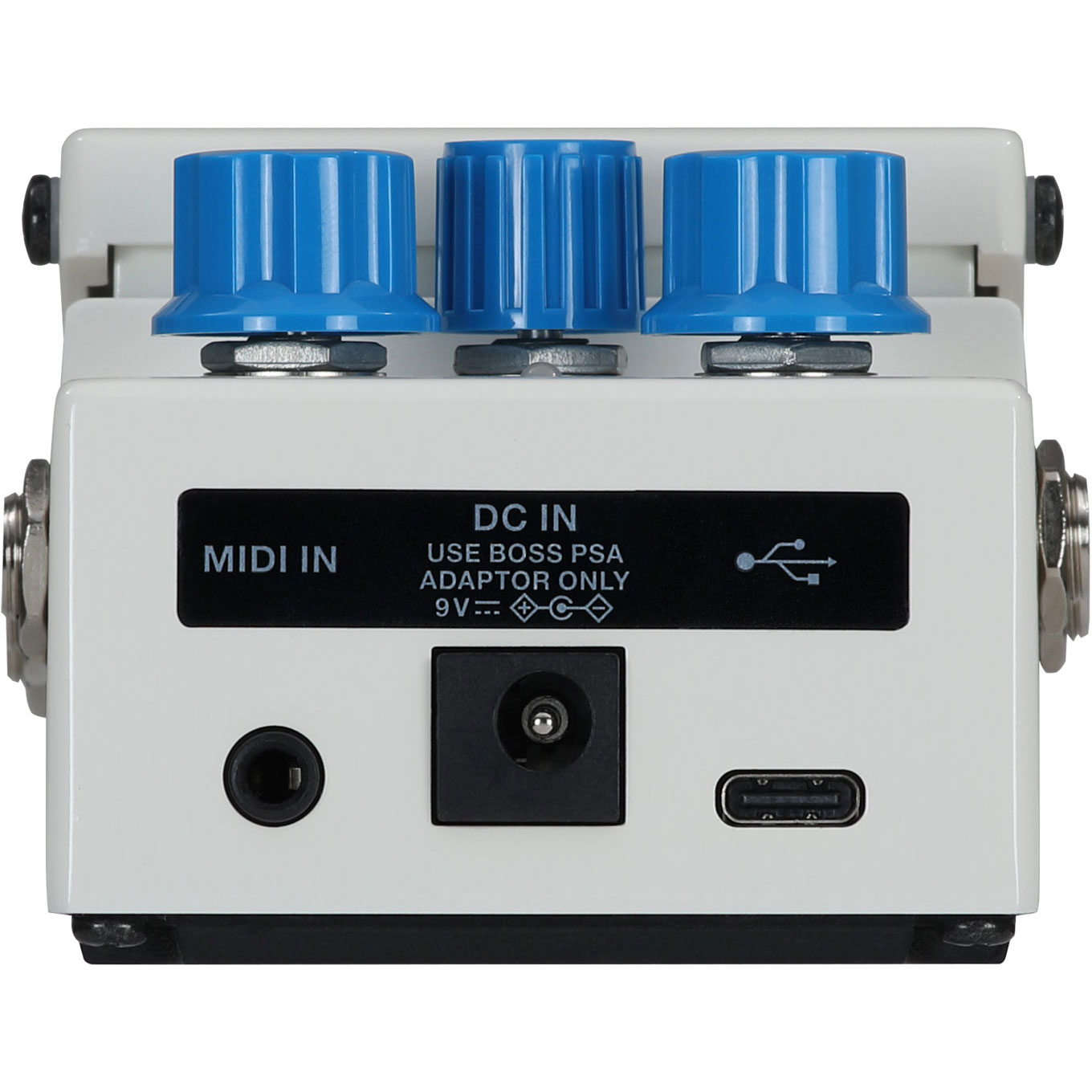

Connectors
INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
CTL1,2/EXP jack: 1/4-inch TRS phone type
DC IN jack
MIDI IN jack: Stereo miniature phone type
USB COMPUTER port: USB Type-C®
Bluetooth
Profile Support: GATT (MIDI over Bluetooth Low Energy)
Power Supply
AC adaptor
Supplied from the USB port
Current Draw
260 mA (AC adaptor)
420 mA (USB)
Accessories
AC adaptor
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Roland Cloud Activation Card
Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size and Weight
Width
73 mm
2-7/8 inches
Depth
125 mm
4-15/16 inches
Height
56 mm
2-1/4 inches
Weight (excluding AC adaptor)
400 g
15 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
