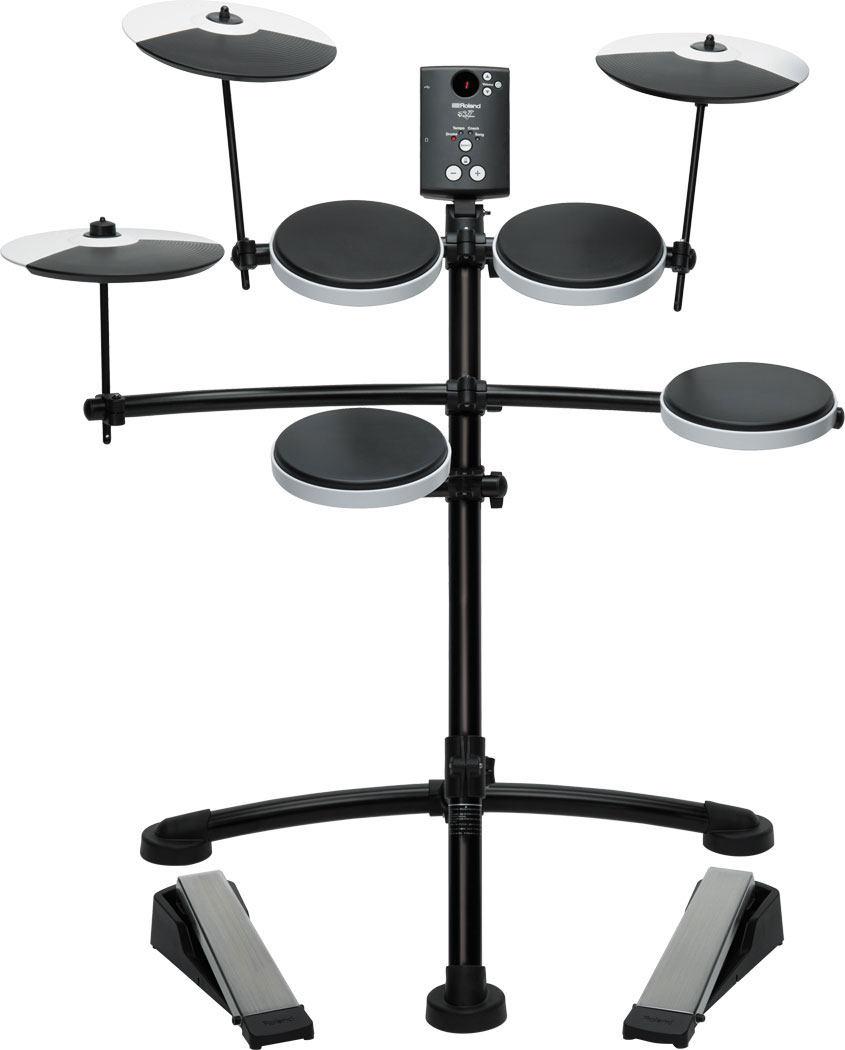

Kit Configuration

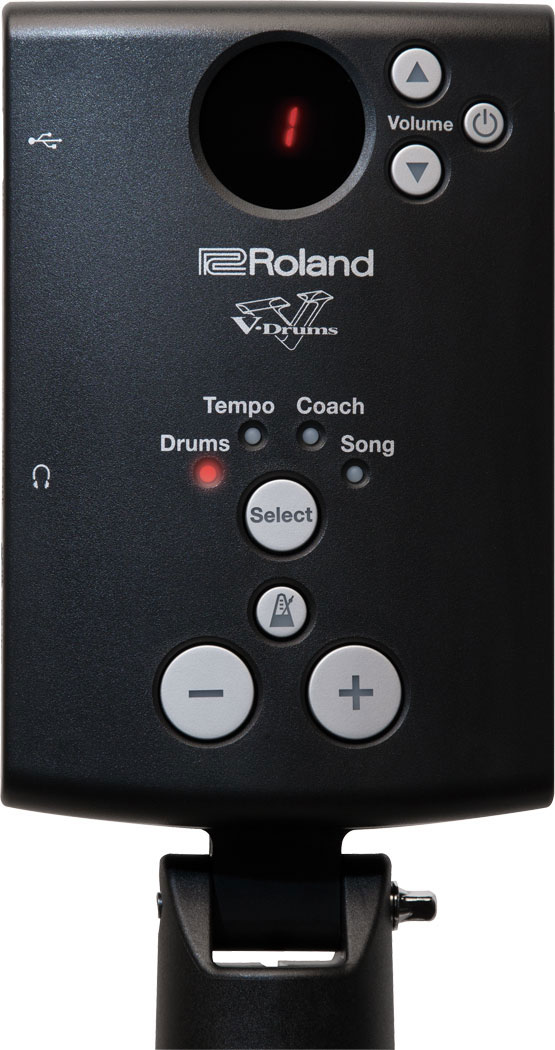

Percussion Sound Module

TD-1

Snare

x 1

Tom

x 3

Crash, Ride

x 1

Hi-hat

x 1

Kick pedal

x 1

Hi-hat pedal

x 1

Other

Drum Kits

15

Coach Functions

10:
Time Check (Easy)
Time Check (Hard)
Change-up
Auto Up/Down
Quiet Count
Tempo Check (Easy)
Tempo Check (Hard)
Stroke Balance
Timer
Recording

Songs

15

Metronome

Rhythm Type (5 types)
Sounds (8 types)
Volume (10 levels)

Display

7 segments, 3 characters (LED)

Connectors

OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB type B
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

Interface

USB (USB-MIDI)

Power Supply

AC adaptor

Current Draw

150 mA

Accessories

Special connection cable
AC adaptor
*Drum throne is not included.

Options (sold separately)

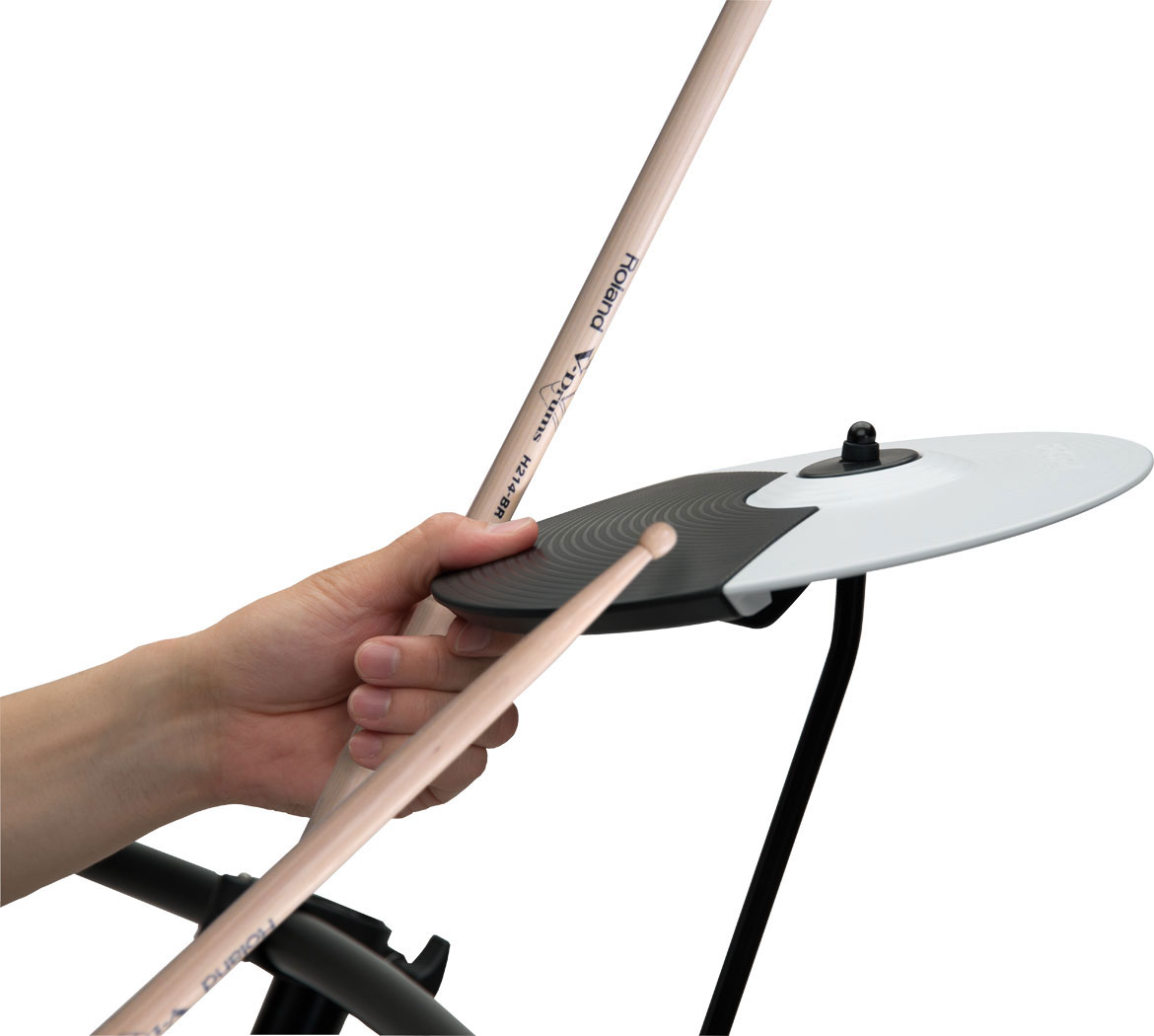

Cymbal: OP-TD1C
Pads: PDX-8, PDX-6
Kick: KD-9, KT-10
Personal Drum Monitor: PM-03
V-Drums Mat: TDM-3

Size and Weight

Width

800 mm
31-1/2 inches

Depth

700 mm
27-9/16 inches

Height

1150 mm
45-5/16 inches

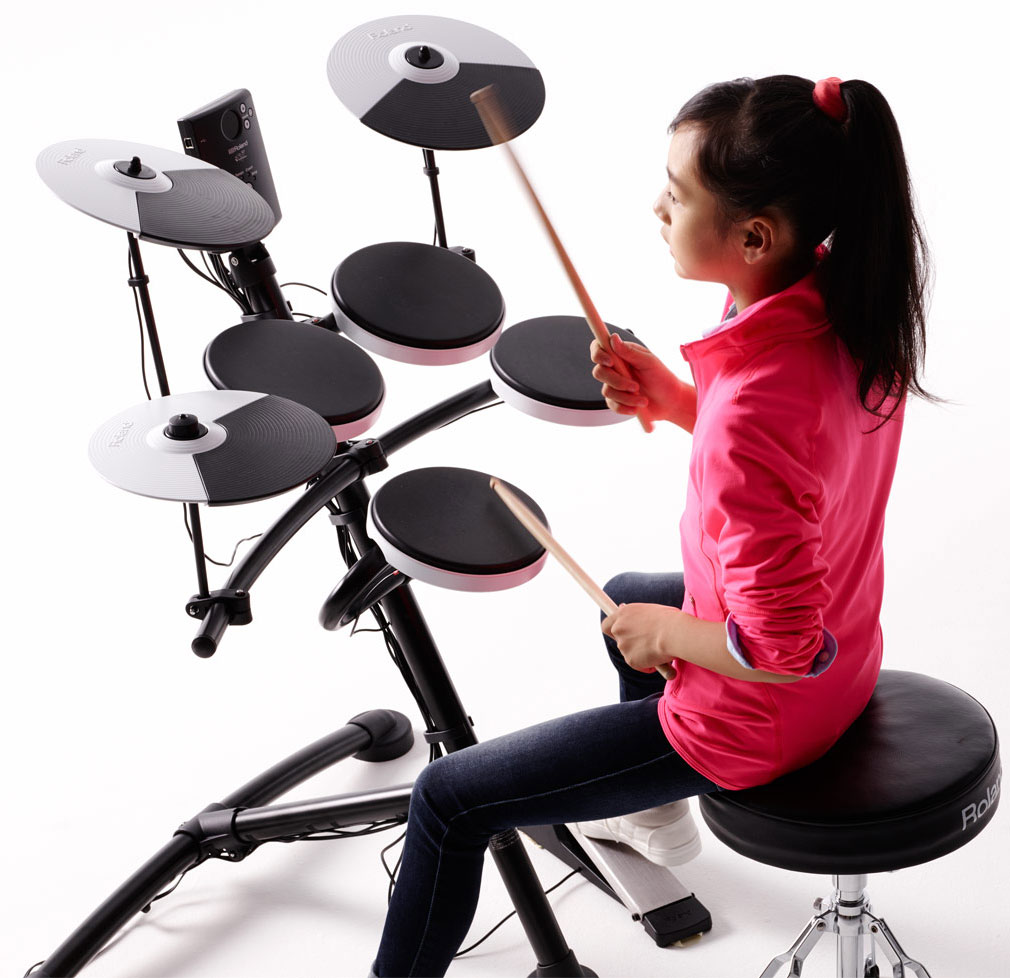

Size and Weight (including cymbals and drum throne)

Width

1000 mm
39-6/16 inches

Depth

1200 mm
47-1/4 inches

Height

1250 mm
49-1/4 inches

Weight

11.4 kg
25 lbs. 3 oz.

*weight: excluding AC adaptor
