Specifikacije Studiomaster Venture 15A

Format: 15? two way

Fixed-charge back plate, permanently polarized condenser

Frequency response:

55Hz – 18kHz (-3dB)

Frequency range:

45kHz – 20kHz (-10dB)

Amplifier power rms:

LF400w HF200w

Amplifier power peak:

1200w

Crossover frequency:

1.5kHz

Woofer:

15? dia, 2.5? voice coil, ferrite magnet

Compression driver:

1.7? voice coil, ferrite magnet

Coverage (Horixontal x Vertical):

80 x 60

Max SPL:

134dB

Cabinet matrial:

15mm ply wood

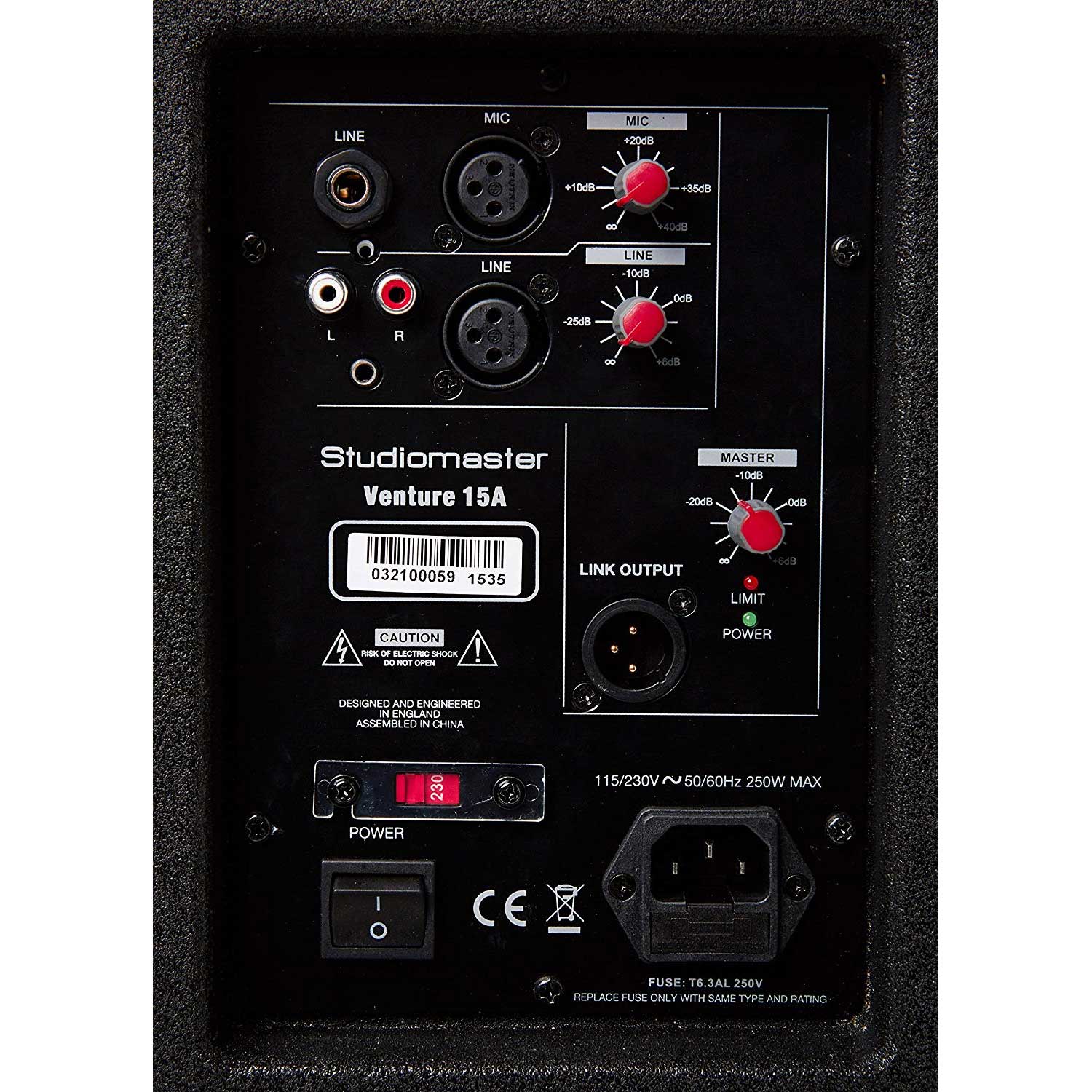

input Connections:

2Channel, XLR, Jack, RCA phono

Fly points:

13 x M10

Power requirements:

230/115V ~ 50/60Hz

Dimension W*H*D:

430x704x400 (mm)

Weight net/shipping:

21.5KG/25.6Kg
