Audac CAP412 Quad Channel 100V Power Amplifier 4 X 120W
Audac CAP412 Quad Channel 100V Power Amplifier 4 X 120W
Audac CAP412 Quad Channel 100V Power Amplifier 4 X 120W
Audac CAP412 Quad Channel 100V Power Amplifier 4 X 120W





Audac CAP412
Quad Channel 100V Power Amplifier 4 X 120W

Quad Channel 100V / 4Ohm Power Amplifier 4 X 120W

EAN Code: 5414795022010
Pozvati za cenu


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

The CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed multi-zone audio distribution systems. It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation.

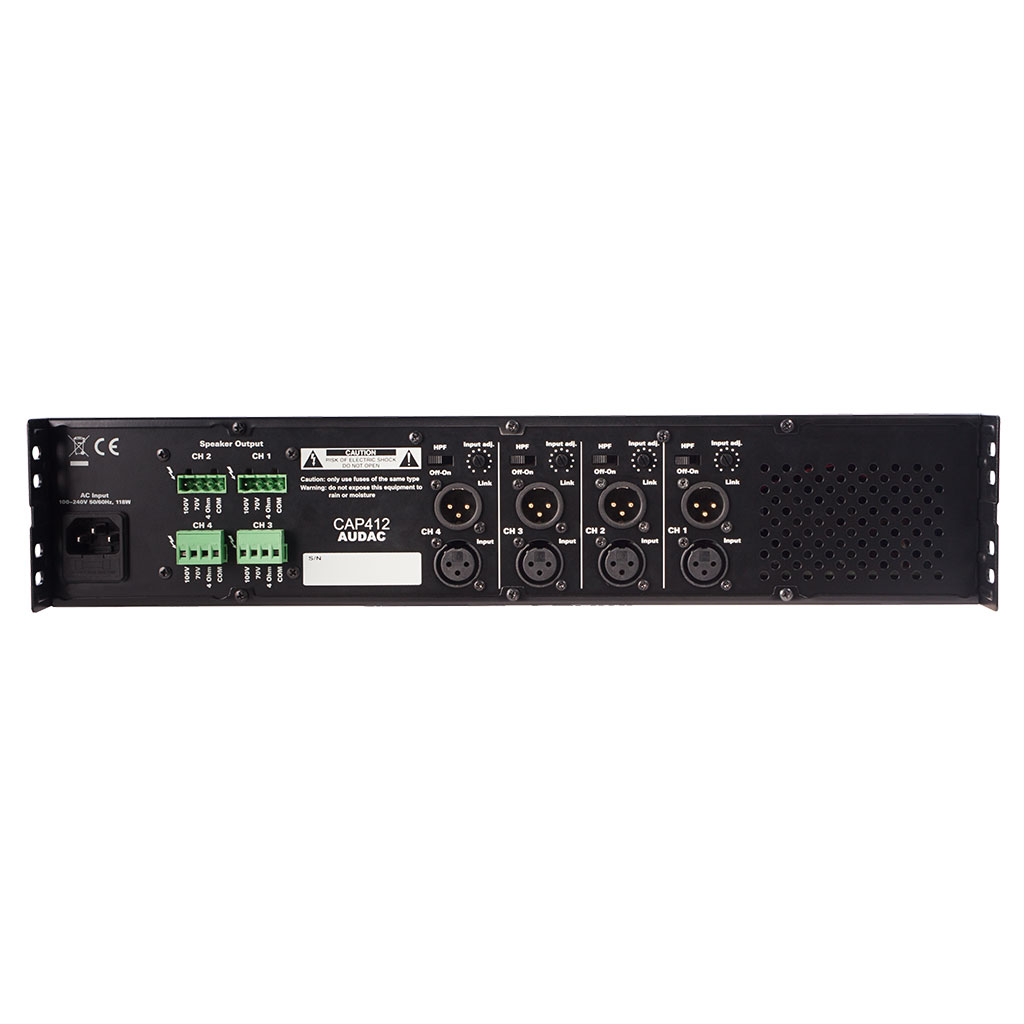

Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

Specifikacije CPA412
RMS Power
4 x 120 W
Output Voltage / Impedance
70V / 100V / 4 Ohm
THD+N
< 0.3 %
Freq. Response
50 Hz - 22 kHz
Signal / Noise
> 100 dB
Power Supply
100 - 240V AC / 50 - 60 Hz
Dimensions
482 x 88 x 420 mm
Weight
14.8 kg
