Audac CAP424 Quad Channel 100V power Amplifier - 4 X 240W
Audac CAP424 Quad Channel 100V power Amplifier - 4 X 240W
Audac CAP424 Quad Channel 100V power Amplifier - 4 X 240W
Audac CAP424 Quad Channel 100V power Amplifier - 4 X 240W





Audac CAP424
Quad Channel 100V power Amplifier - 4 X 240W

Quad Channel 100V power Amplifier - 4 X 240W

EAN Code: 5414795031166
Pozvati za cenu


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

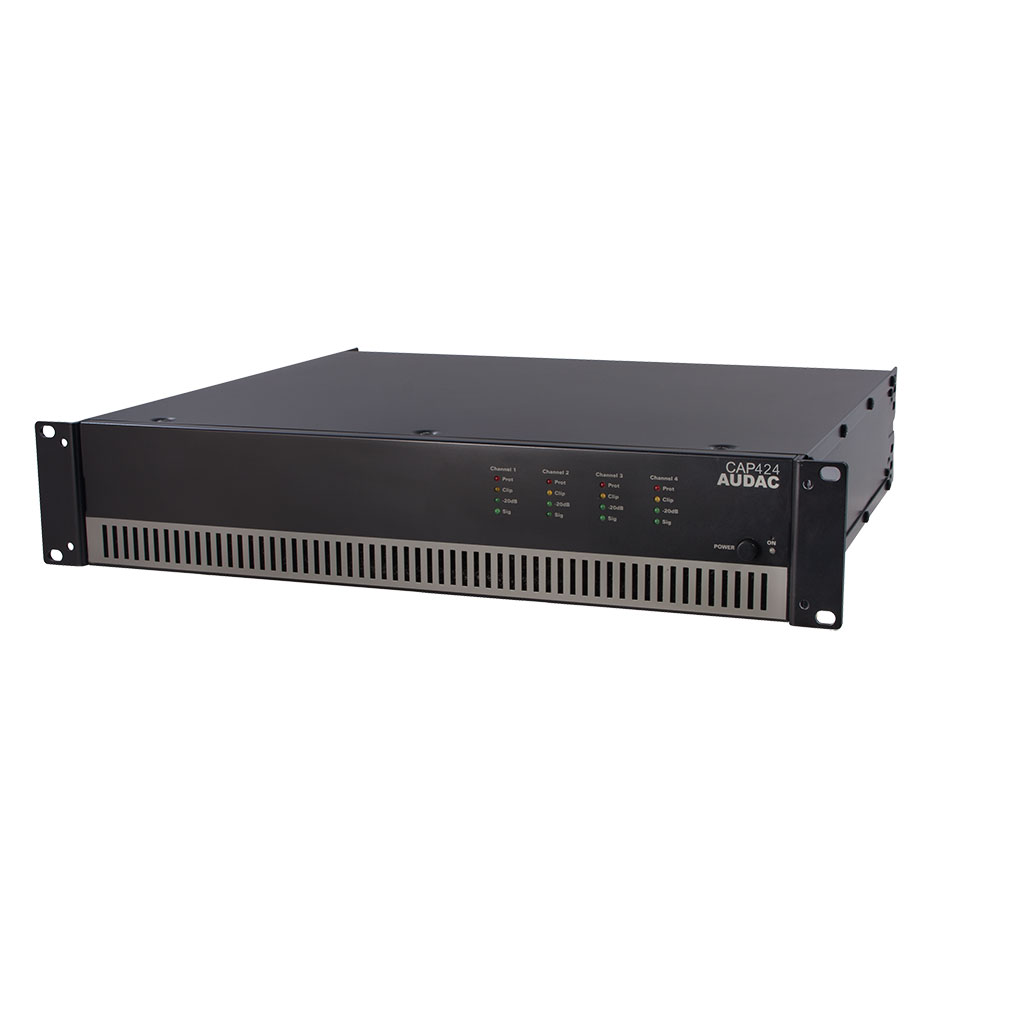

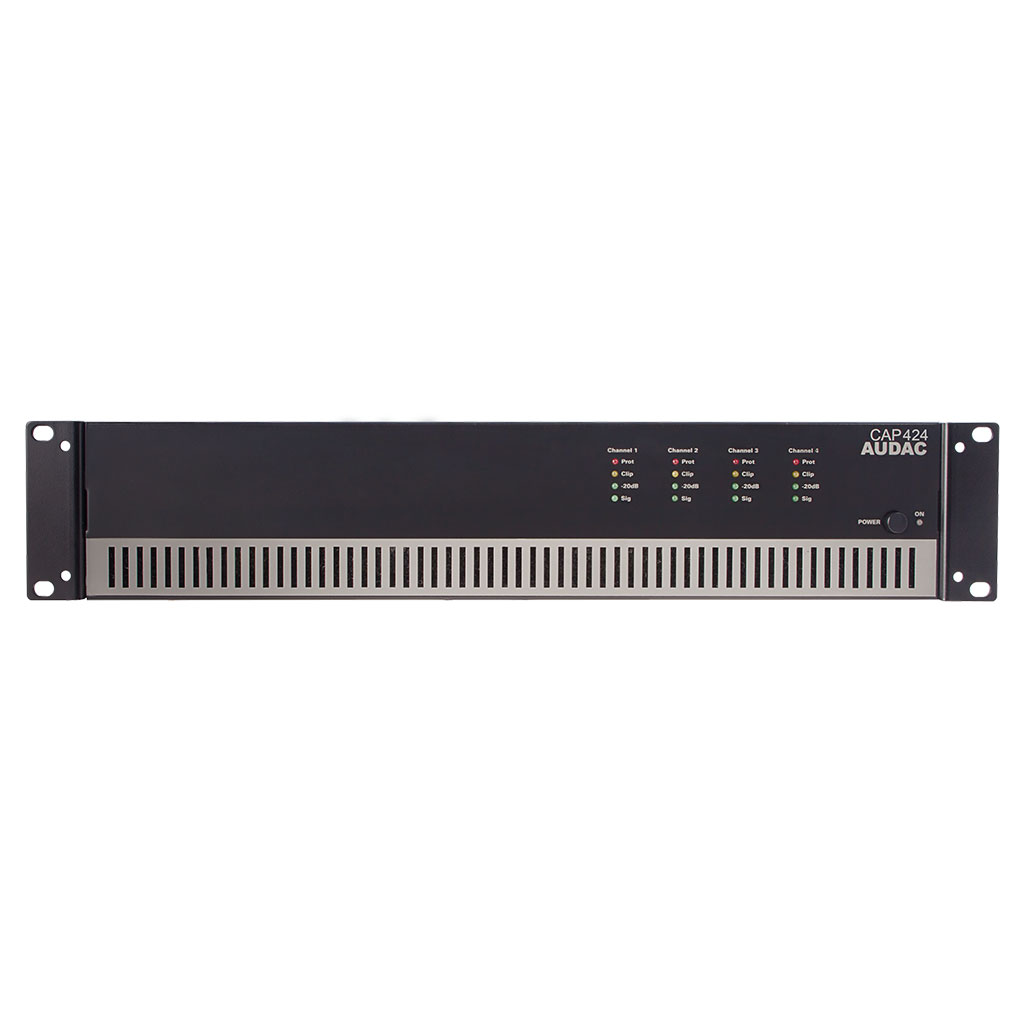

The CAP Series are professional 100V multi-channel power amplifiers, containing various models with different channels and different output power configuration. The CAP424 is a four channel version with an output power 240 Watt. This way, a flexible solution is created for multi-zone audio distribution systems with four zones. They are designed as no-nonsense amplifiers with only the necessary controls and connections which creates great simplicity in use and installation. A high efficiency and reliability of the devices is achieved by using switching power supplies in combination with Class-D amplifier technology.

A temperature controlled FAN constantly keeps all parts within the right operation range, while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC malfunction, Short circuit, overheating, overload and limits the signal when necessary.

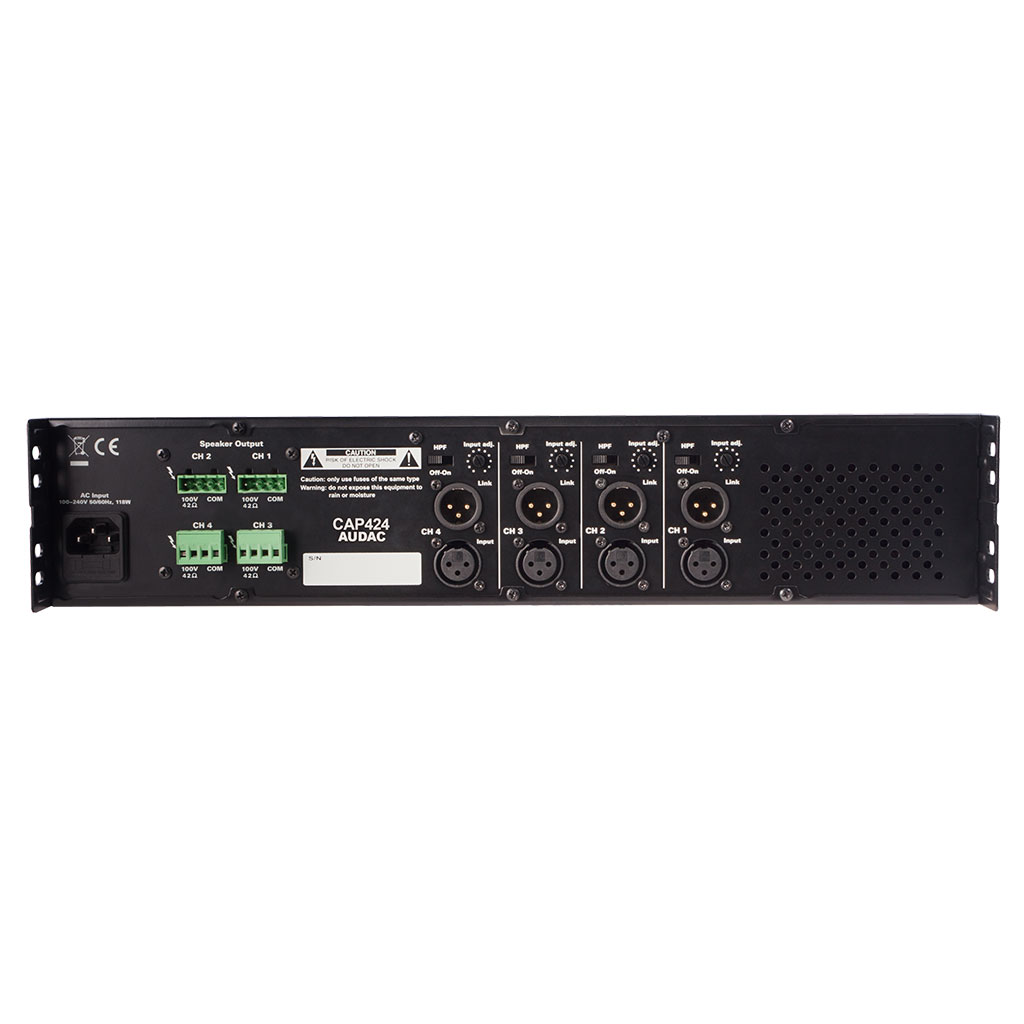

The input connections are performed using balanced XLR connectors and Link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a cain adjustment potentiometer are provided for each channel. The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.

Specifikacije CPA424
RMS Power
4 x 240 W
Output Voltage / Impedance
100V (42 Ohm)
THD+N
<0.3%
Freq. Response
50 Hz - 22 kHz
Signal / Noise
>100 dB
Power Supply
230 - 240V AC / 50 Hz
Dimensions
482 x 88 x 420 mm
Weight
8.35 kg
