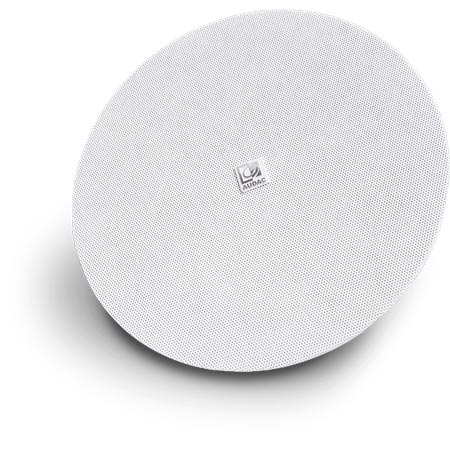

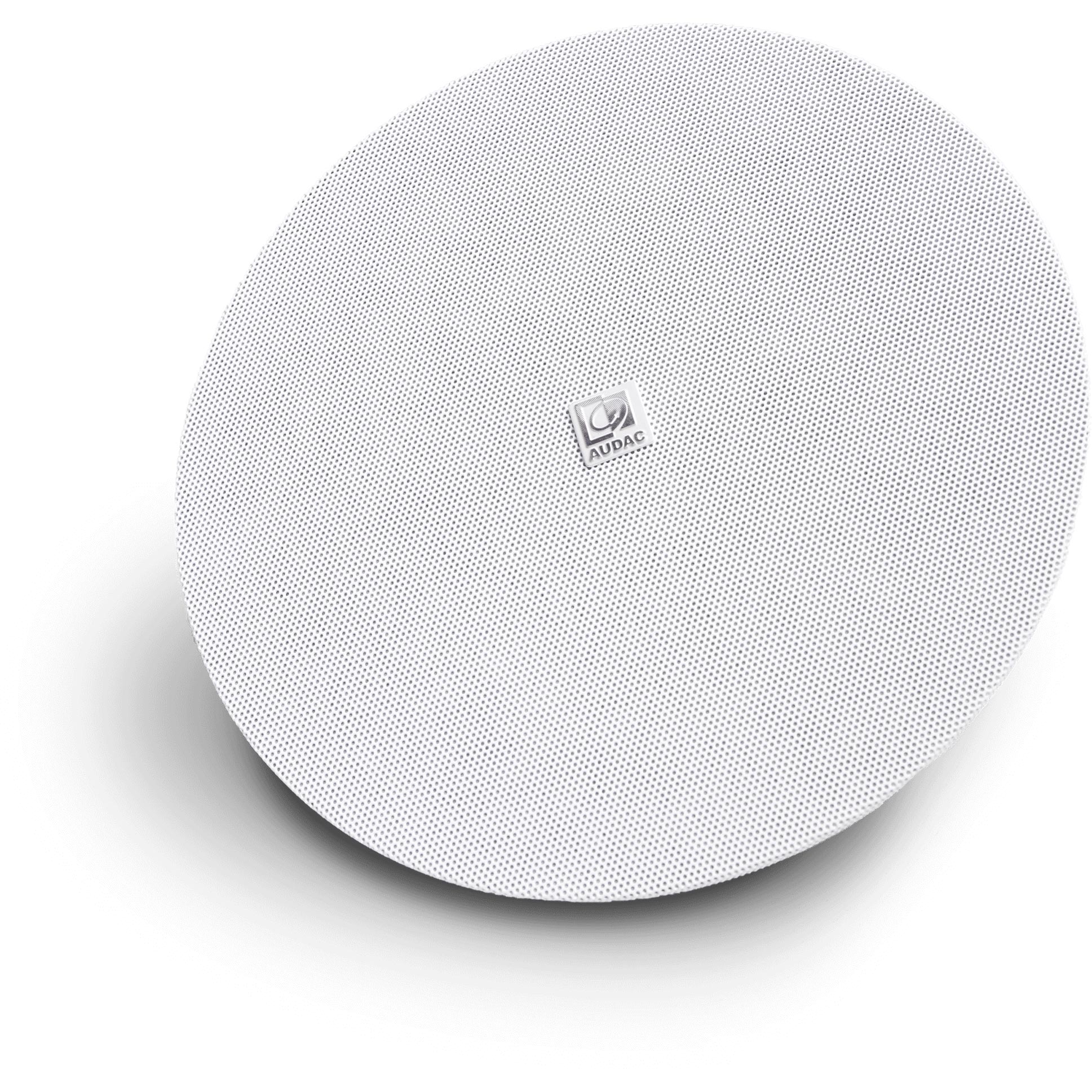

Audac CENA706/W
Audac CENA706/W
Audac CENA706/W
Audac CENA706/W





Audac CENA706/W




EAN Code: 5414795042285
Pozvati za cenu


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

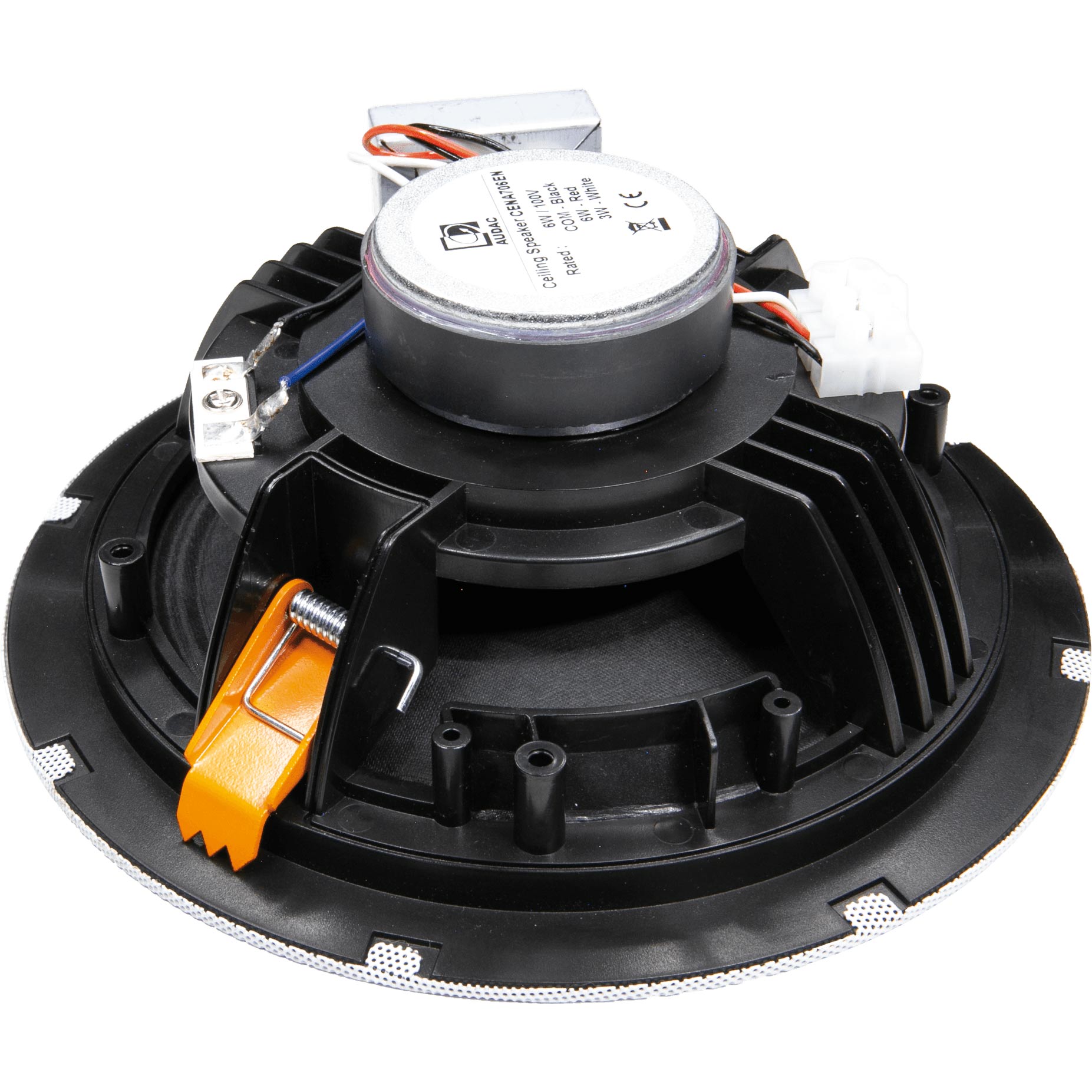

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFitT fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnectT, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm2.

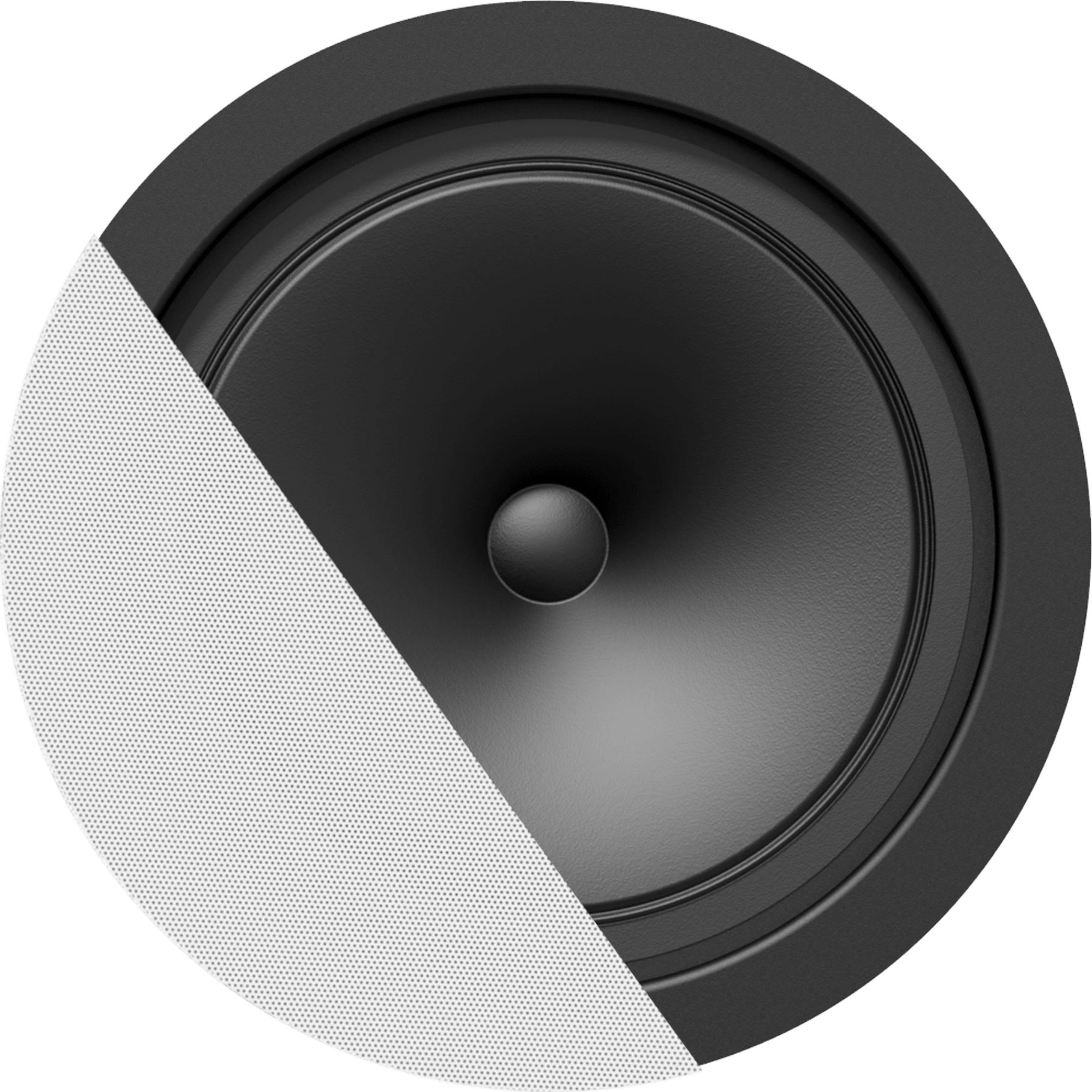

The CENA706 features a 6.5" broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.



System specifications
Max. Power 20 W
RMS Power 10 W
Sensitivity (1W/1m) 96 dB
Speaker type Broadband
Impedance 8 Ohm (CENA706)
Connection SnapConnect™
Screw terminal
Impedance 16 Ohm (CENA710D)
Drivers 6.5” Full Range
Sound Pressure (Max. W/1m) @ 100 V 106 dB
Frequency Response (ą 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 6 W / 1667 Ohm
2 3 W / 3333 Ohm
Dispersion Conical 140°
Product Features
Cut-out measurement 167 mm (O)
Dimensions 193 x 70 mm (O x D)
Construction ABS
Front finish borderless finely perforated steel grill
Built-in depth 67 mm

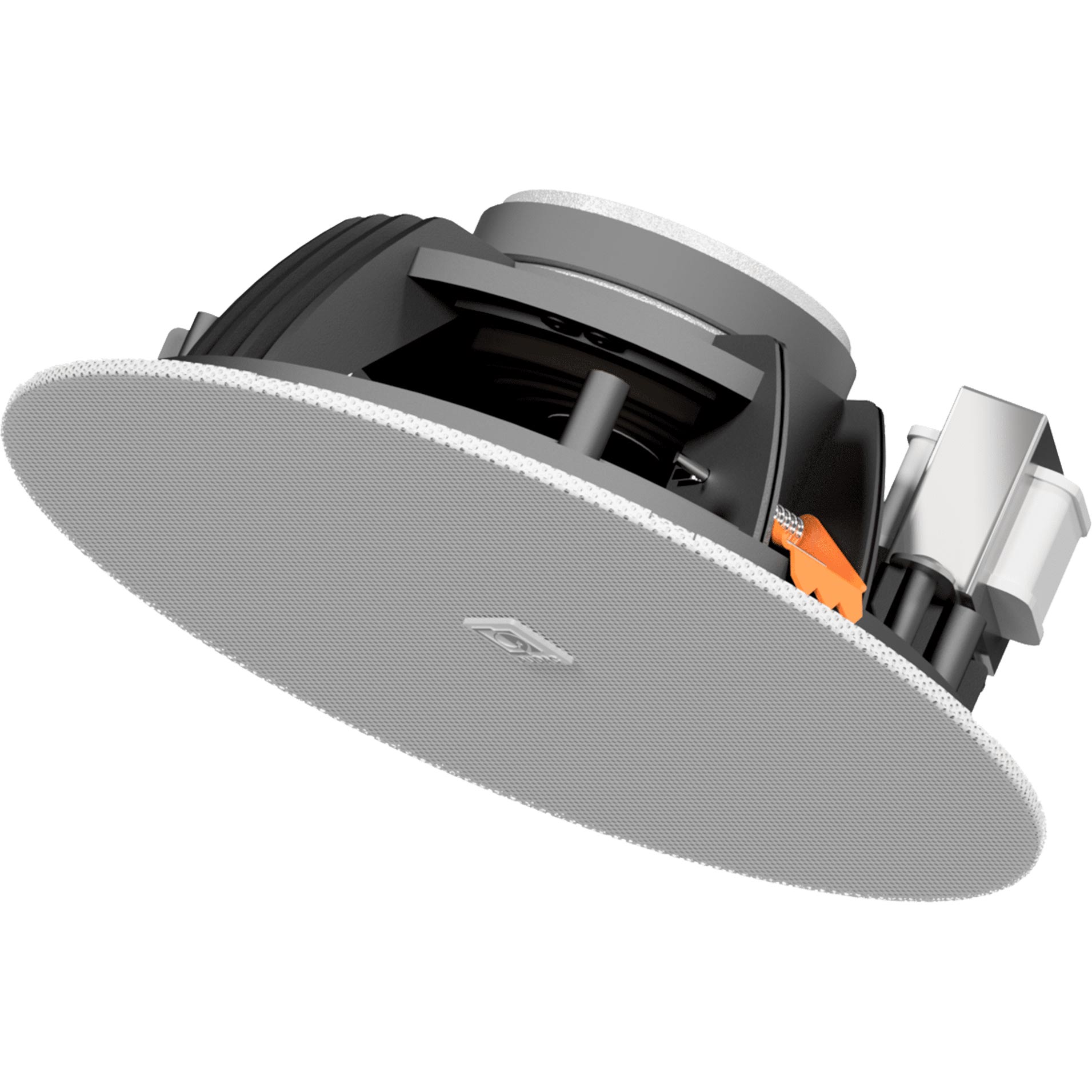

Mounting SpringFit™ mounting system
Colours White (RAL9003) (CENA706/W)
Black (RAL9005) (CENA706/B)
Weight 0.71 kg
Operating temperature -15 °C ~ 55 °C
