ProCab MC305B/1 microphone cable - 2 x 0,23mm2 - blue - 100m
ProCab MC305B/1 microphone cable - 2 x 0,23mm2 - blue - 100m
ProCab MC305B/1 microphone cable - 2 x 0,23mm2 - blue - 100m
ProCab MC305B/1 microphone cable - 2 x 0,23mm2 - blue - 100m





ProCab MC305B/1
microphone cable - 2 x 0,23mm2 - blue - 100m

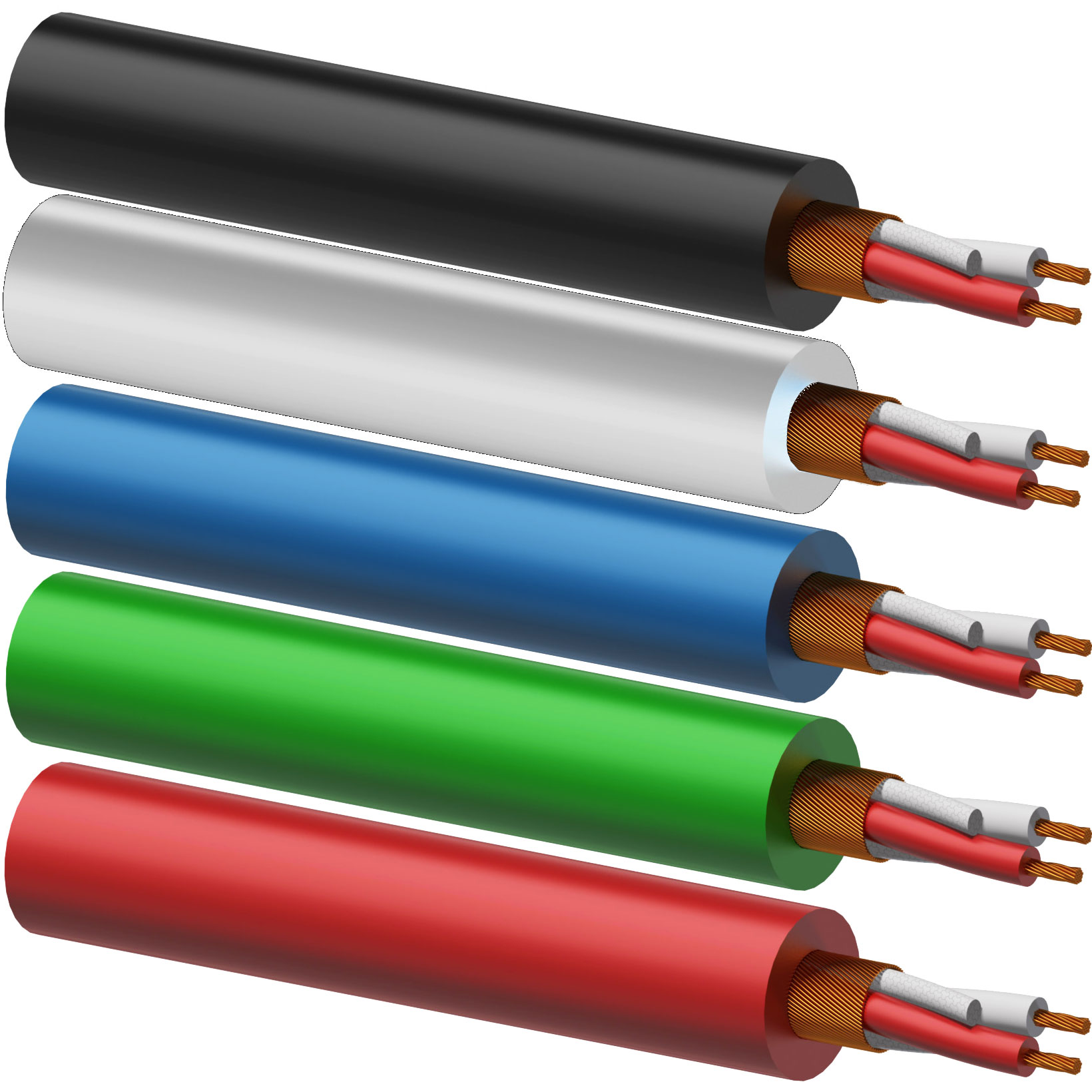

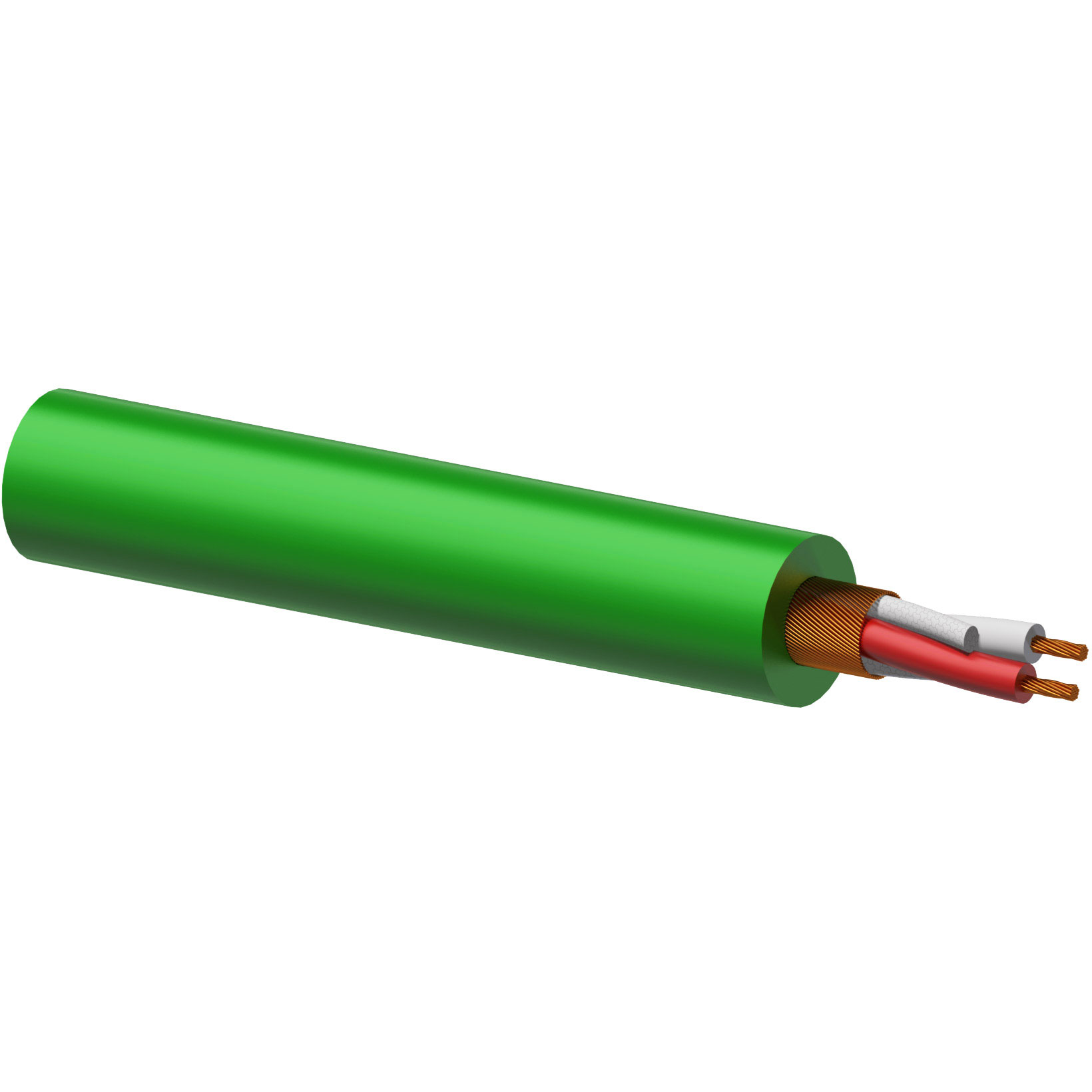

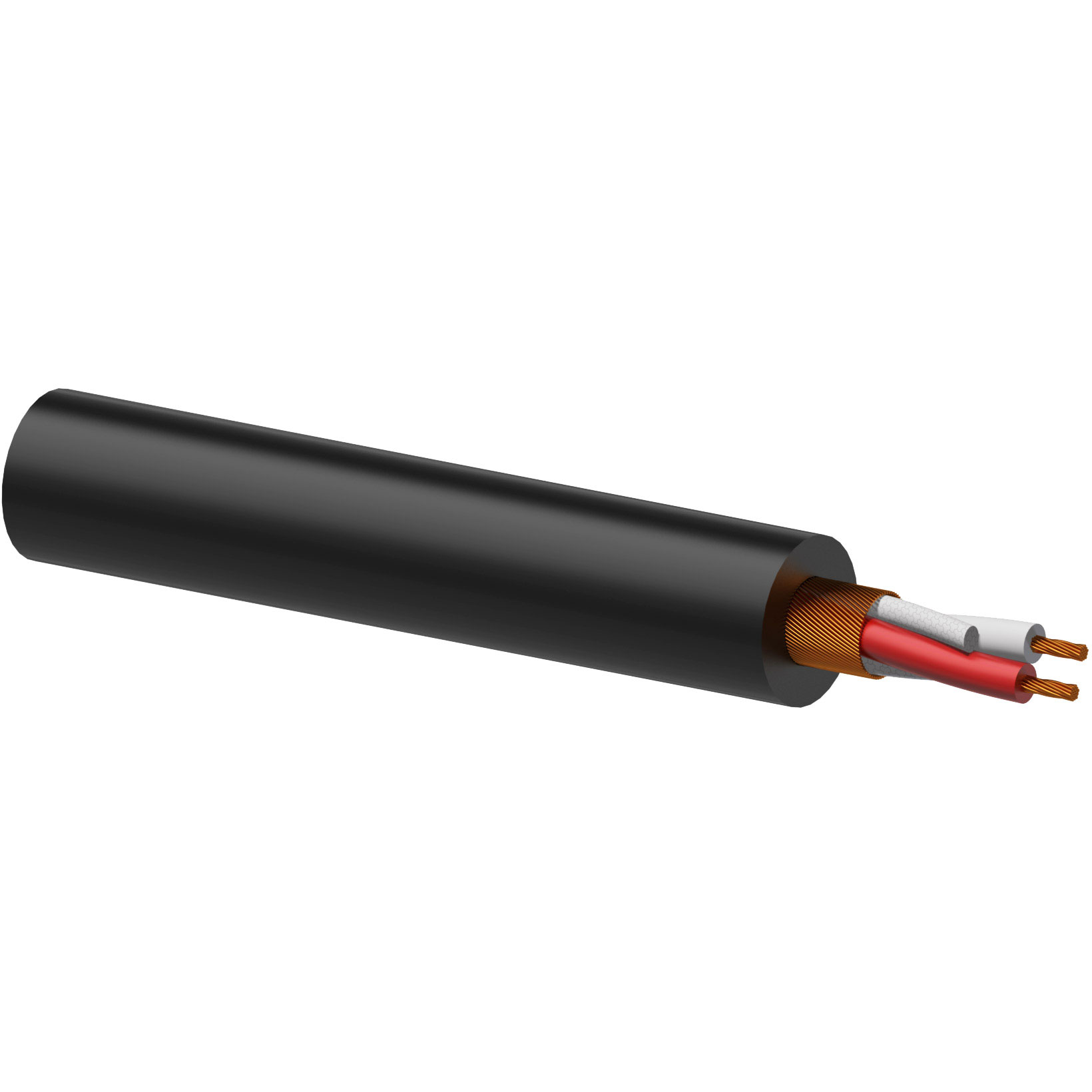

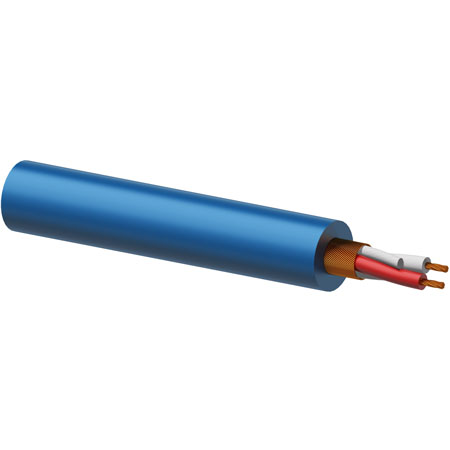

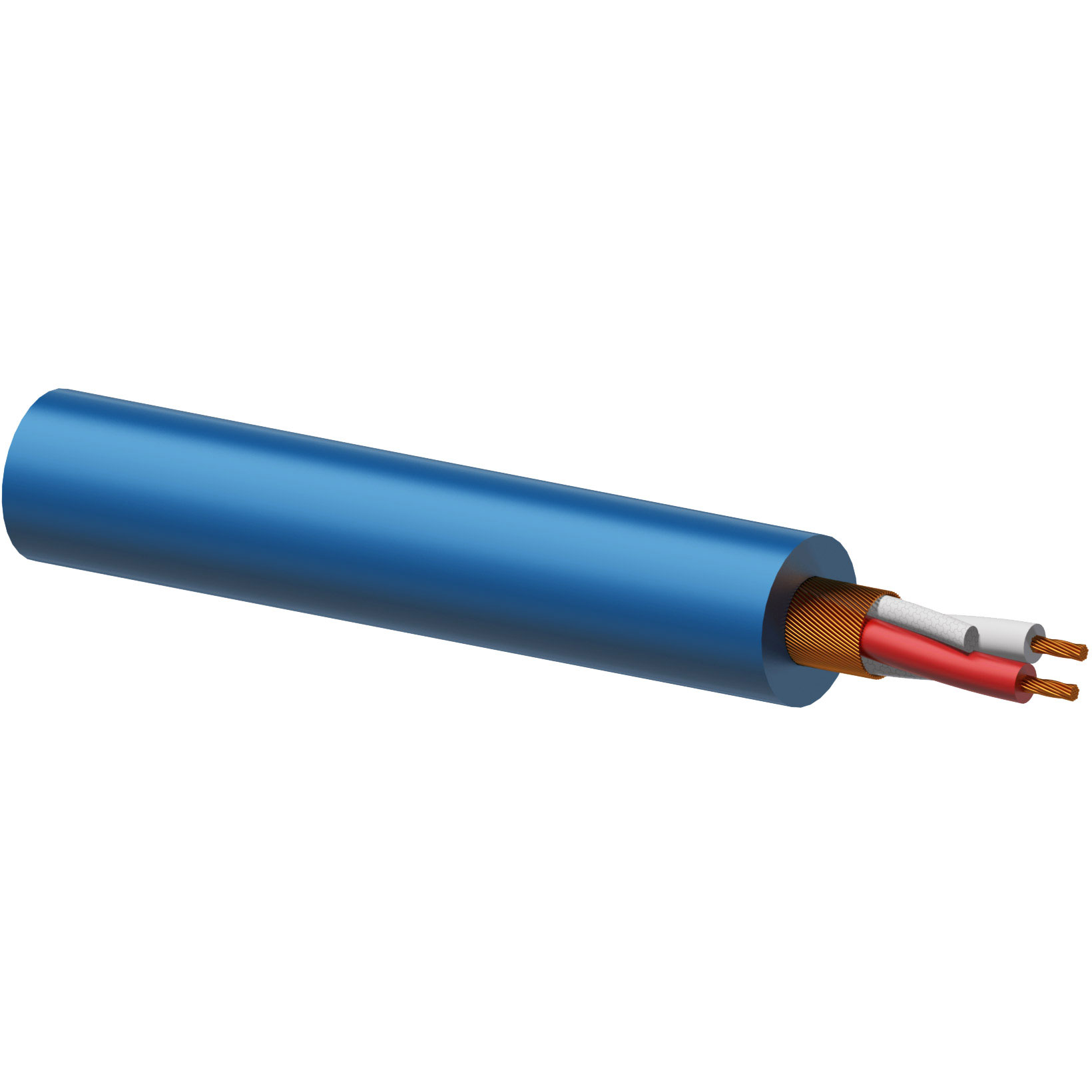

The MC305 is a high quality microphone cable for indoor and outdoor use. Two insulated and twisted conductors of 0.23mm2 are provided inside the cable. The durable shielding gives an excellent protection against interference of all kinds.The MC305 is an "all-round" microphone cable with an O.D of 6 mm and is suited for all kinds of applications where reliable signal transmission is needed. The MC305 is available in 5 different colours.

EAN Code: 5414795012905
Cena (kom) :
100.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

Specifications

Type of cable Balanced microphone cable
Inner conductor 2 x BC 20 x 0.12 mm
Inner conductor section 0.23 mm²
Isolation LDPE ø 1.4 mm
Isolation colour Red / White
Number of conductors 2
Conductor twisting Yes
Shielding BC 64 x 0.12 mm - Spiral
Shielding % 100%
Filling Cotton yarn
Separator None
Outer jacket Flexible PVC
Outer jacket colour Black / White / Green / Blue / Red
Outer jacket dimensions ø 6 mm
Printing colour White or Grey
Printing text Procab MC305
Lead resistance - 100 meter 7.9 Ohm
Cable crosstalk - 100 meter Min 73.3 dB
Cap. Lead to lead - meter @ 1 kHz 63 pF
Cap. Lead to shielding - meter @ 1 kHz 115 pF
American Wire Gauge (AWG) 24
