Type of cable
|
Balanced microphone cable
|
|
Inner conductor
|
2 x BC 20 x 0.12 mm
|
|
Inner conductor section
|
0.23 mm²
|
|
Isolation
|
LDPE ø 1.4 mm
|
|
Isolation colour
|
Red / White
|
|
Number of conductors
|
2
|
|
Conductor twisting
|
Yes
|
|
Shielding
|
BC 64 x 0.12 mm - Spiral
|
|
Shielding %
|
100%
|
|
Filling
|
Cotton yarn
|
|
Separator
|
None
|
|
Outer jacket
|
Flexible PVC
|
|

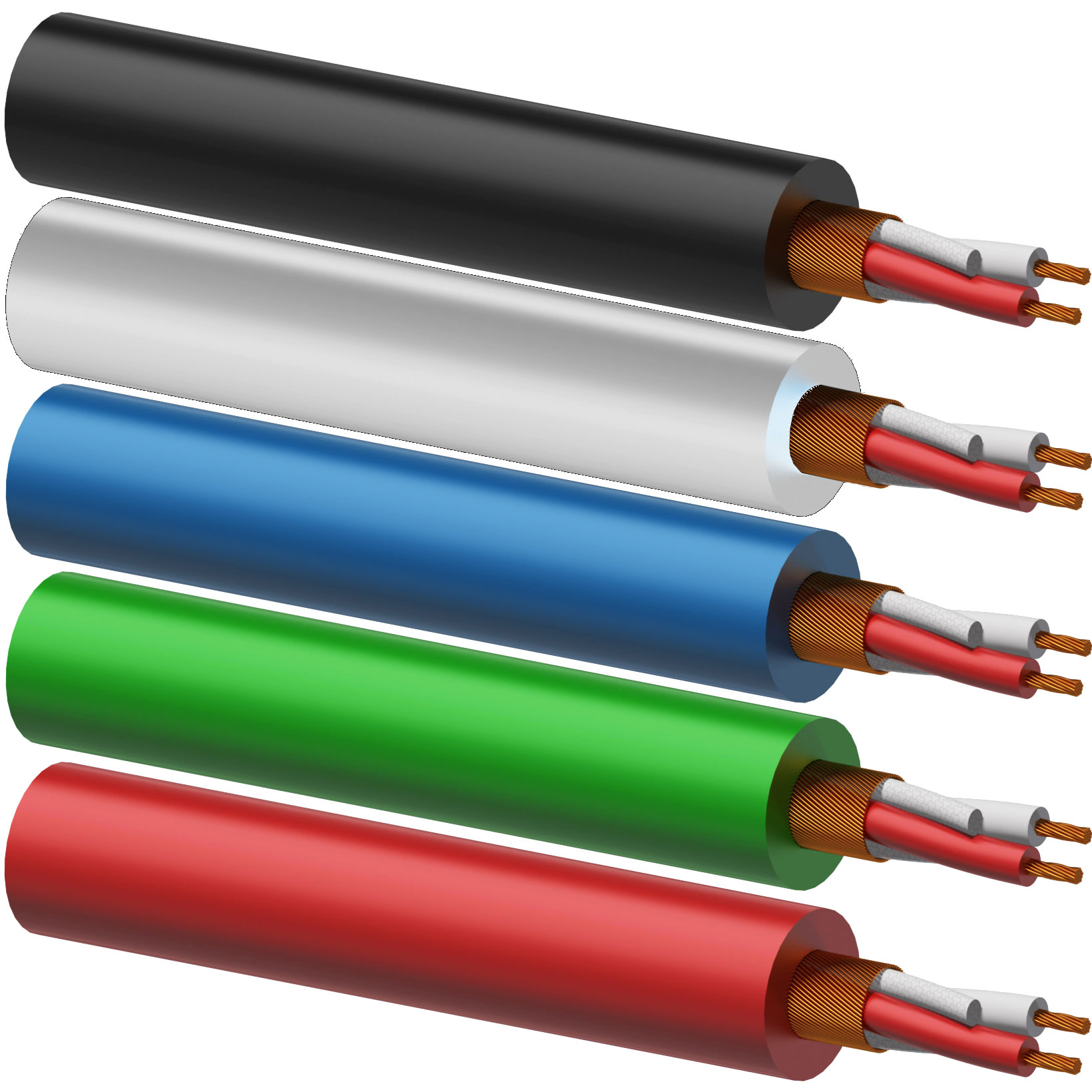

Outer jacket colour
|
Black / White / Green / Blue / Red
|
|
Outer jacket dimensions
|
ø 6 mm
|
|
Printing colour
|
White or Grey
|
|
Printing text
|
Procab MC305
|
|
Lead resistance - 100 meter
|
7.9 Ohm
|
|
Cable crosstalk - 100 meter
|
Min 73.3 dB
|
|
Cap. Lead to lead - meter @ 1 kHz
|
63 pF
|
|
Cap. Lead to shielding - meter @ 1 kHz
|
115 pF
|
|
American Wire Gauge (AWG)
|
24
|
