ProCab MC105G/1 Microphone Cable - 2 x 0,125mm2 - 3,5mm - For Installation Use gray - 100m
ProCab MC105G/1 Microphone Cable - 2 x 0,125mm2 - 3,5mm - For Installation Use gray - 100m
ProCab MC105G/1 Microphone Cable - 2 x 0,125mm2 - 3,5mm - For Installation Use gray - 100m
ProCab MC105G/1 Microphone Cable - 2 x 0,125mm2 - 3,5mm - For Installation Use gray - 100m





ProCab MC105G/1
Microphone Cable - 2 x 0,125mm2 - 3,5mm - For Installation Use gray - 100m

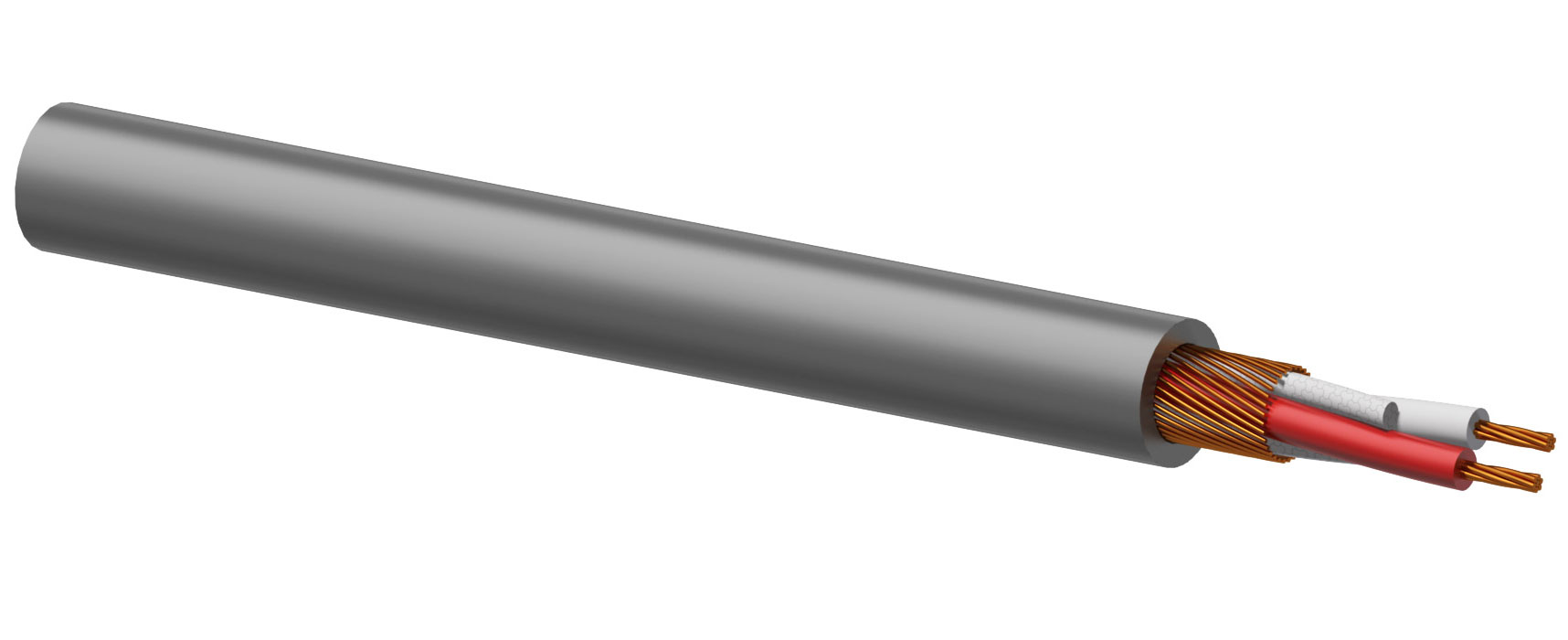

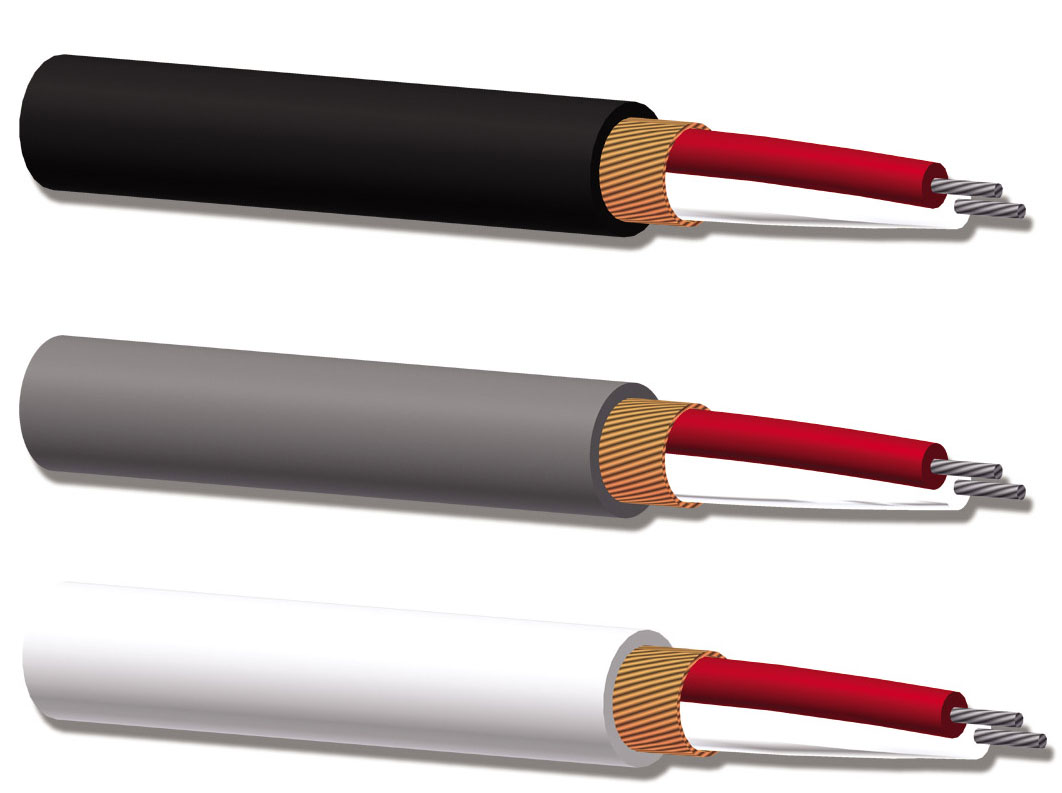

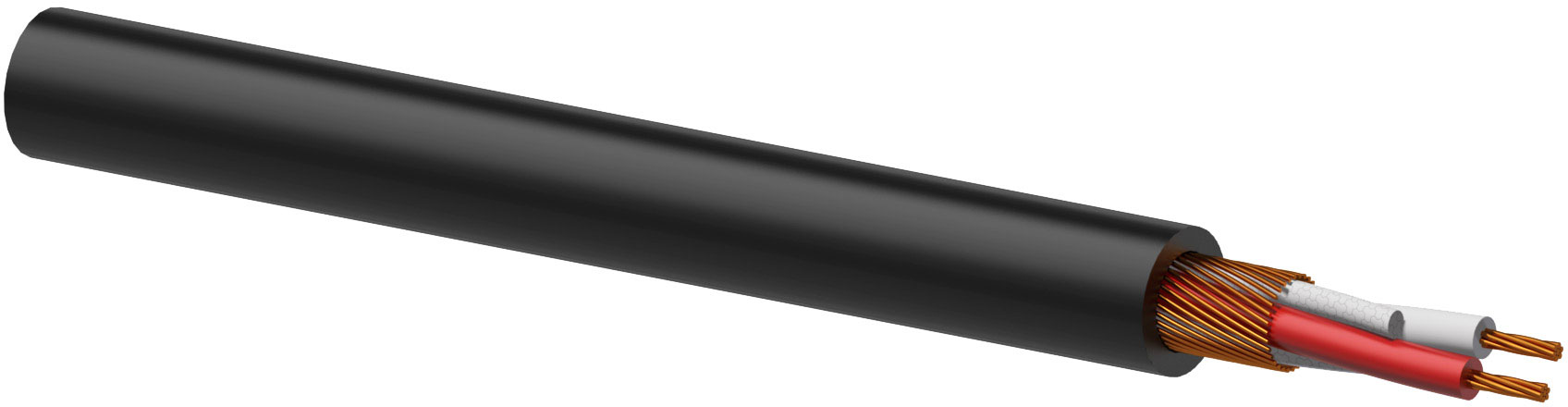

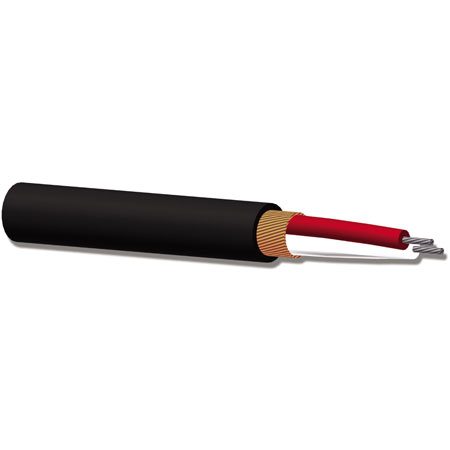

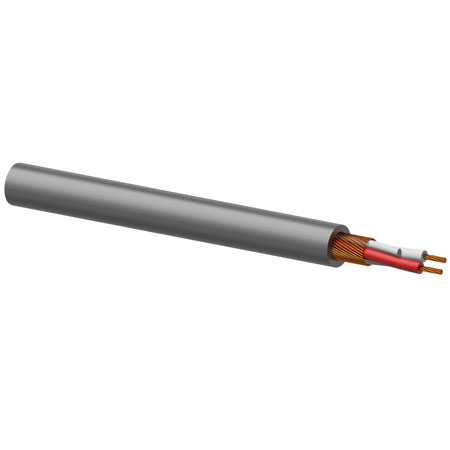

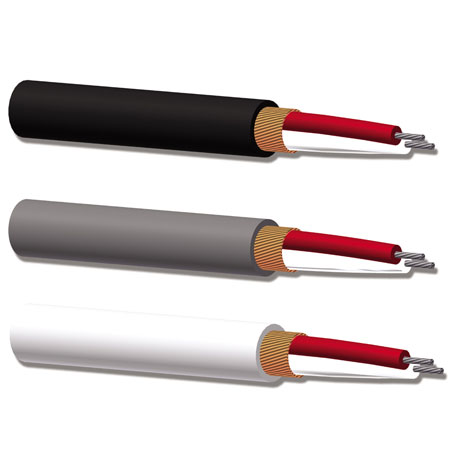

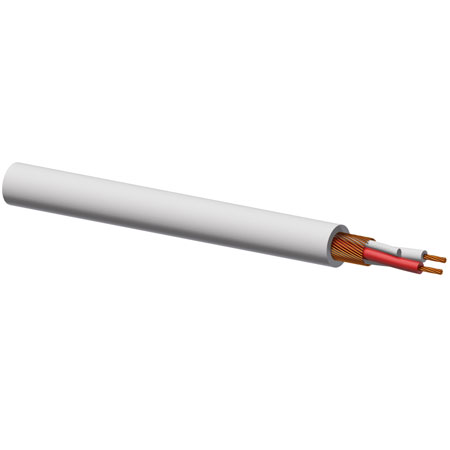

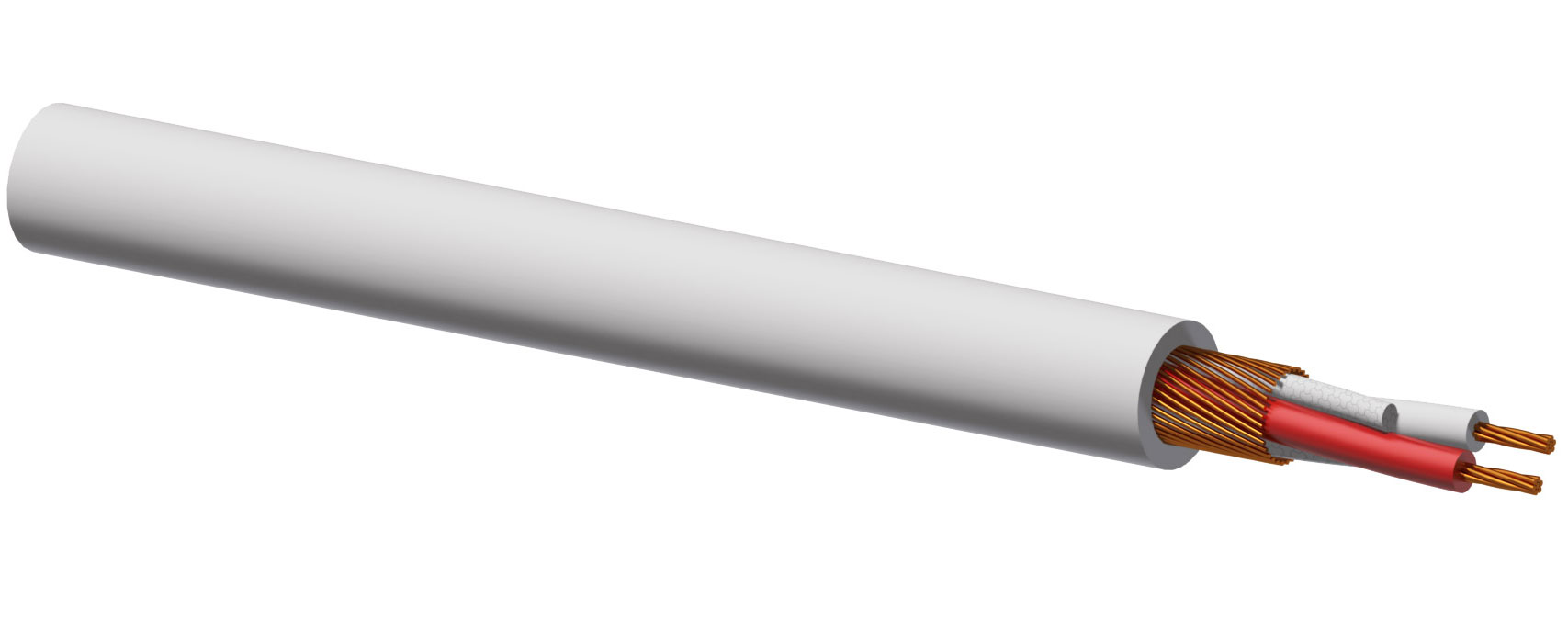

The MC105 microphone cable is a very compact cable for indoor and outdoor applications. The cable consists of a flexible PVC jacket and has an O.D. of 3.5 mm. Two insulated and twisted conductors are provided inside the cable. The durable shielding gives an excellent protection against interference of all kinds.The MC105, which is available in black, grey or white, can be used in fixed installations or for internal wiring of audiorack syste

EAN Code:
Cena () :
60.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

Specifications

Type of cable Balanced microphone cable
Inner conductor 2 x BC 7 x 0.15 mm
Inner conductor section 0.125 mm²
Isolation LDPE ø 1.0 mm
Isolation colour Red / White
Number of conductors 2
Conductor twisting Yes
Shielding BC 32 x 0.12 mm - Spiral
Shielding % 100%
Filling None
Separator None
Outer jacket Flexible PVC
Outer jacket colour Black / White / Grey
Outer jacket dimensions ø 3.5 mm
Printing colour White or Black
Printing text Procab MC105
Lead resistance - 100 meter 13.75 Ohm
Cable crosstalk - 100 meter Min 73.3 dB
Cap. Lead to lead - meter @ 1 kHz 54 pF
Cap. Lead to shielding - meter @ 1 kHz 98 pF
Velocity of proporation (%) 69.59
American Wire Gauge (AWG) 26
