ProCab MC405/1 Microphone cable - 2 x 0,25mm2 - 6mm - For installation use - 100m
ProCab MC405/1 Microphone cable - 2 x 0,25mm2 - 6mm - For installation use - 100m
ProCab MC405/1 Microphone cable - 2 x 0,25mm2 - 6mm - For installation use - 100m
ProCab MC405/1 Microphone cable - 2 x 0,25mm2 - 6mm - For installation use - 100m

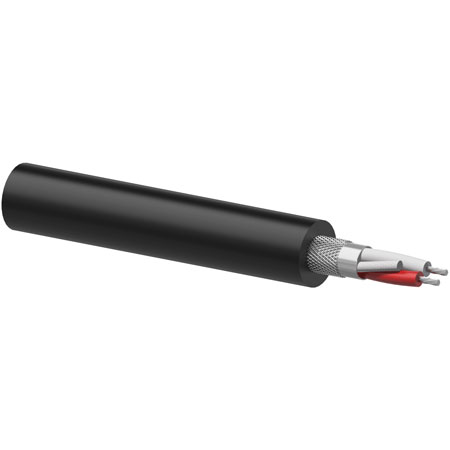

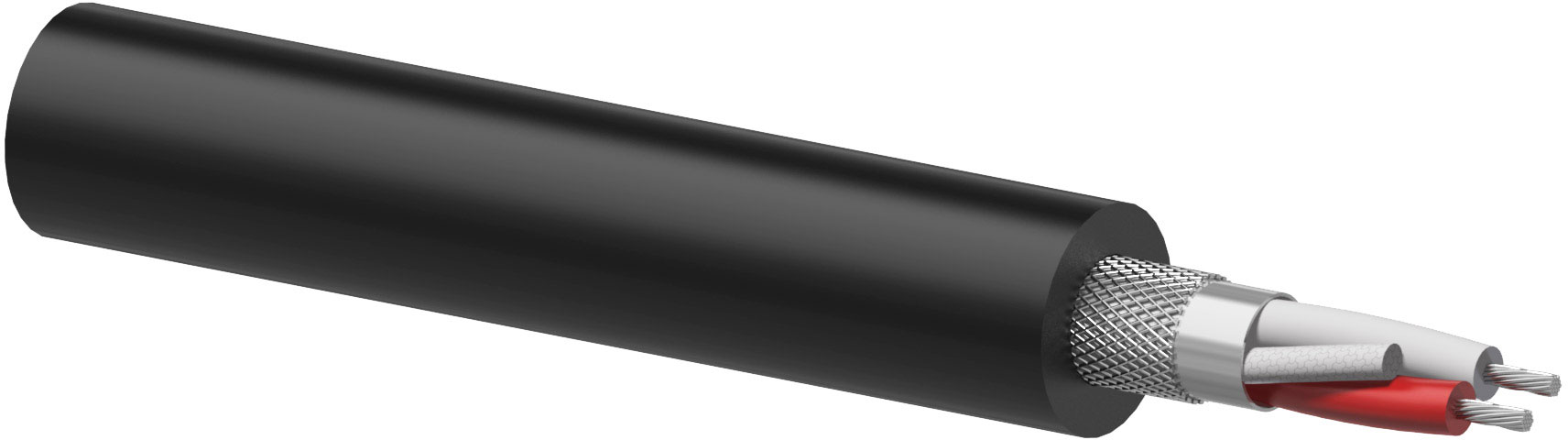

ProCab MC405/1
Microphone cable - 2 x 0,25mm2 - 6mm - For installation use - 100m

The MC405 is a high quality microphone cable fixed indoor and outdoor applications. Two insulated and twisted conductors of 0.23 mm2 with Aluminum foil and braided shield are inside the cable.Shielding gives an excellent protection against interference of all kinds.The MC405 is a quality microphone cable with an O.D diameter of 6 mm and is suited for all kinds of fixed applications where reliable signal transmission and little loss of signal is nee

EAN Code:
Cena () :
110.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

The MC405 is a high quality microphone cable fixed indoor and outdoor applications. The cable has a straight and rugged jacket made of PVC with an ease of handling when installing. Two insulated and twisted conductors of 0.23 mm2 with Aluminum foil and braided shield are provided inside the cable.

The durable shielding gives an excellent protection against interference of all kinds such as electromagnetic fields produced by dimmers, electric motors or power cables.The MC405 is a quality microphone cable with an O.D diameter of 6 mm and is suited for all kinds of fixed applications where reliable signal transmission and little loss of signal is needed.

Untitled Document

Specifications

Type of cable Balanced microphone cable
Inner conductor 2 x TC 20 x 0.12 mm
Inner conductor section 0.23 mm²
Isolation LDPE ø 1.4 mm
Isolation colour Red / White
Number of conductors 2
Conductor twisting Yes
Shielding TC 64 x 0.12 mm - Braiding & Aluminum foil
Shielding % 100%
Filling Cotton yarn
Separator None
Outer jacket Flexible PVC
Outer jacket colour Black
Outer jacket dimensions ø 6 mm
Printing colour White
Printing text Procab MC405
Lead resistance - 100 meter 3.7 Ohm
Cable crosstalk - 100 meter Min 76.2 dB
Cap. Lead to lead - meter @ 1 kHz 113 pF
Cap. Lead to shielding - meter @ 1 kHz 221 pF
American Wire Gauge (AWG) 24
