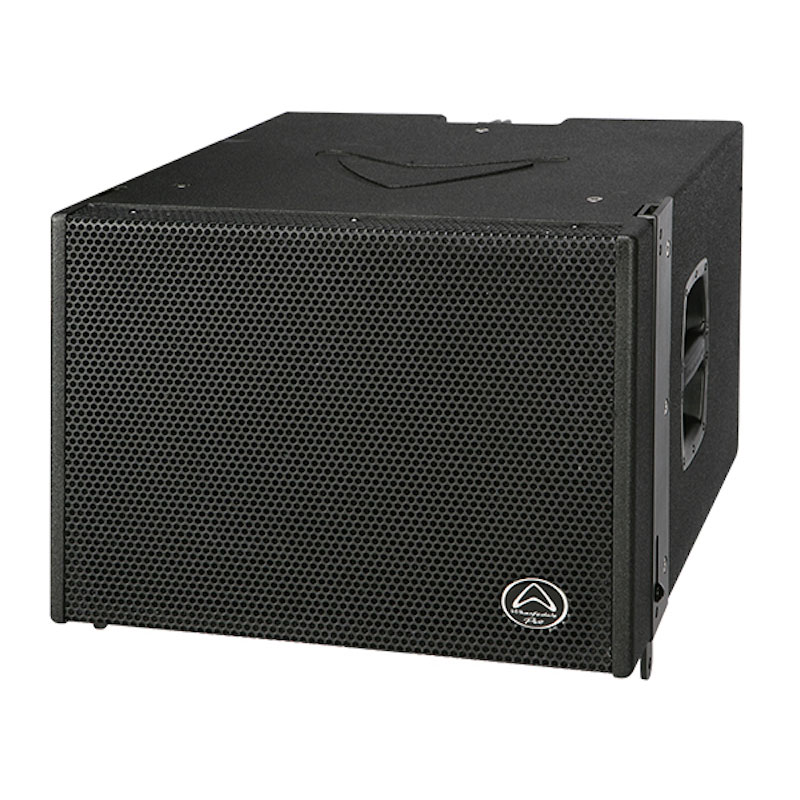

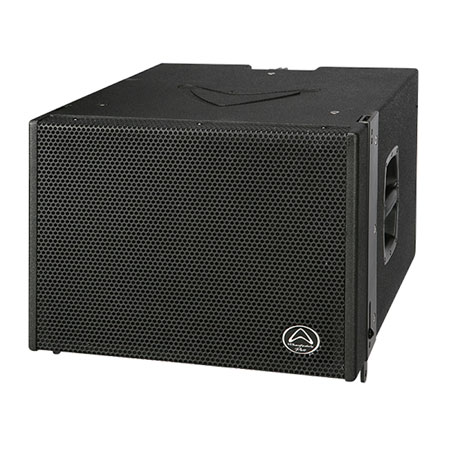

For the low-end punch in a WLA-25 rig, we have also created the 141dB SPL WLA-25SUB subwoofer.
This subwoofer physically and acoustically matches the WLA-25 system.
Using a reversed-phase horn loaded design, the 2 * 10 LF drivers with massive 2.5 coils deliver the consistent low end punch to complete this versatile and portable array.
Dual 10" Wharfedale Pro LF transducers
The two 10" LF drivers inside the WLA-25SUB deliver the low end punch needed from the array. Using a reversed-phase horn loaded design the two drivers work in harmony to produce up to 141dB Max SPL. Each driver is custom made by Wharfedale Pro and boasts 2.5" voice coils. These larger coils help with cooling and ultimately allow for the higher power handling that the WLA-25SUB can deliver.
Flexible Fly Frame

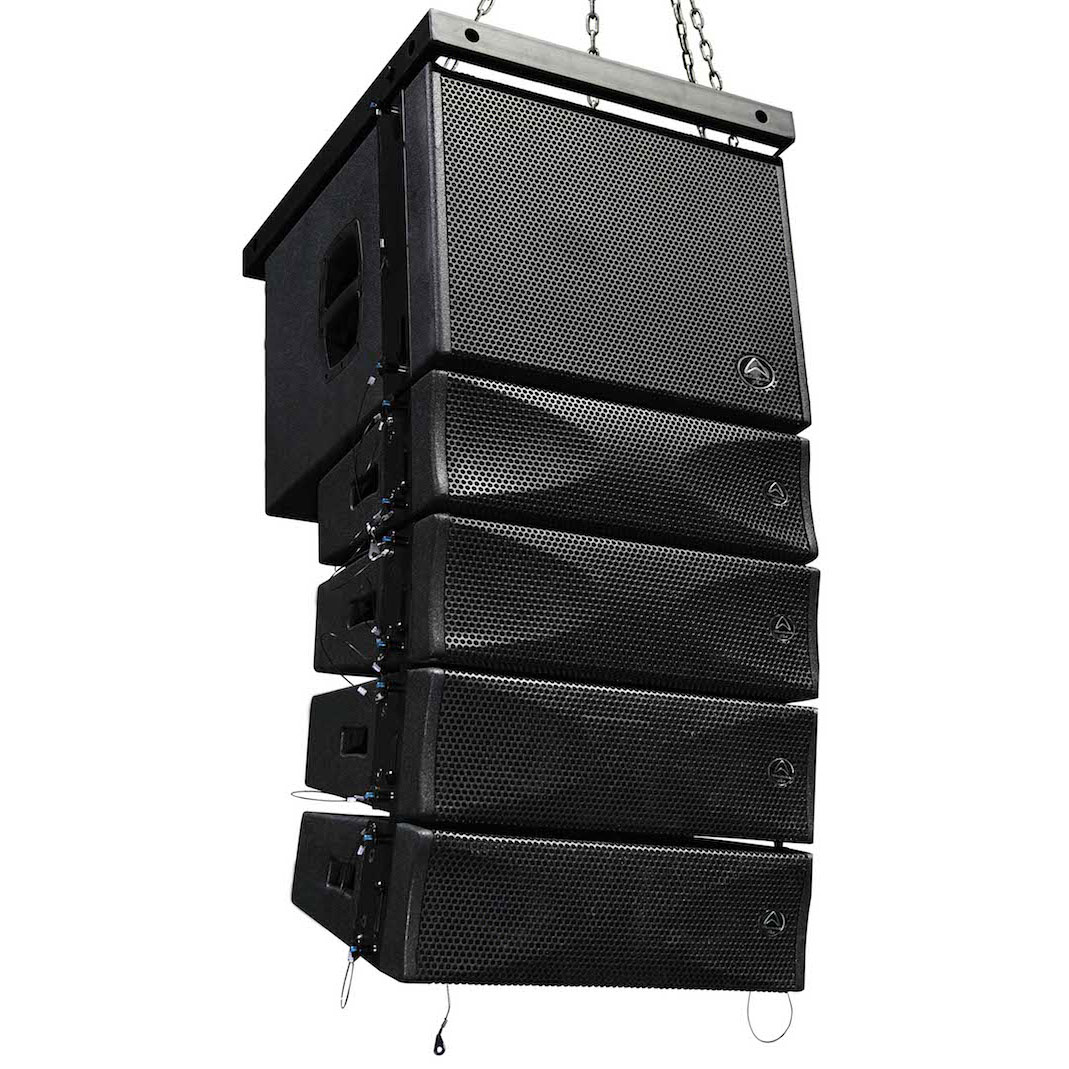

Arrays can be assembled using only WLA-25 line array modules or with WLA-25SUB Subwoofers at the top of the array. The WLA-25SUB Fly Frame allows for a WLA-25SUB subwoofer to be used at the top of the array. The WLA-25SUB Fly Frame supports up to 12 x WLA-25 modules and 1 x WLA-25SUB with a safety factor of 12. For WLA-25 arrays where a subwoofer is used on the floor, WLA-25 components can be flown using the WLA-25 Fly Frame.
Ready for Ground Stacking
WLA-25 rigging doubles up as an optimized ground stacking system, using the WLA-25SUB subwoofer as a base. Arrays of WLA-25 line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas
Control
For maximum control of such a system, the Versadrive series of Digital Matrix Controllers deliver dynamic effects processing which ensures the right frequencies are sent to the different components within the line array. A huge selection of effects are at your fingertips. On the input side a Versadrive includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay. For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.
