Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

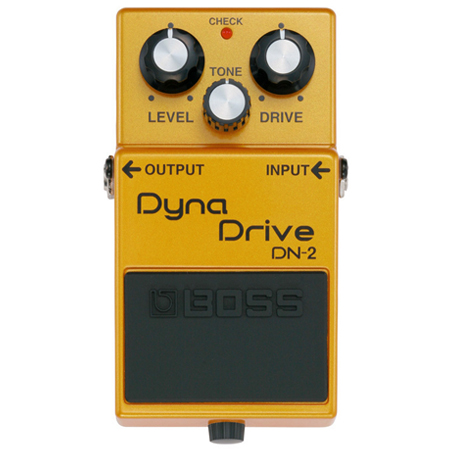

Controls

Pedal switch, LEVEL knob, TONE knob, DRIVE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)

Power Supply

DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)

Current Draw

36 mA (DC 9 V)

Expected battery life under continuous use

Carbon: 3 hours, Alkaline: 10 hours * These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Dry Battery 006P/9V (6LR61)

Options

AC Adaptor (PSA series)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

440 g
1 lbs.

* 0 dBu = 0.775 Vrms* The battery that is supplied with the unit is for temporary use, intended primarily for testing the unit's operation.* We recommend that alkaline battery be used when replacing the battery.

*The specifications are subject to change without notice.
