Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

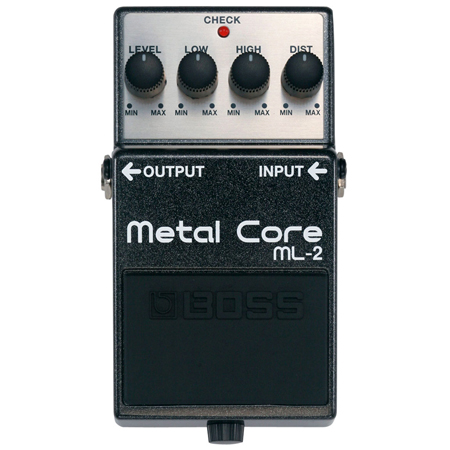

Controls

Pedal switch, LEVEL knob, LOW knob, HIGH knob, DIST knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)

Power Supply

DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)

Current Draw

36 mA (DC 9 V)

Expected battery life under continuous use

Carbon: 3 hours, Alkaline: 10 hours * These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Dry Battery 006P/9V (6LR61)

Options

AC Adaptor (PSA series)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

440 g
1 lbs.

* 0 dBu = 0.775 Vrms
* The battery that is supplied with the unit is for temporary use, intended primarily for testing the unit's operation.
* We recommend that alkaline battery be used when replacing the battery.

*The specifications are subject to change without notice.
