Audio-Technica ATCS-A60RX Receiver antenna
Audio-Technica ATCS-A60RX Receiver antenna
Audio-Technica ATCS-A60RX Receiver antenna
Audio-Technica ATCS-A60RX Receiver antenna





Audio-Technica ATCS-A60RX
Receiver antenna



EAN Code:
Cena (kom) :
1140.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

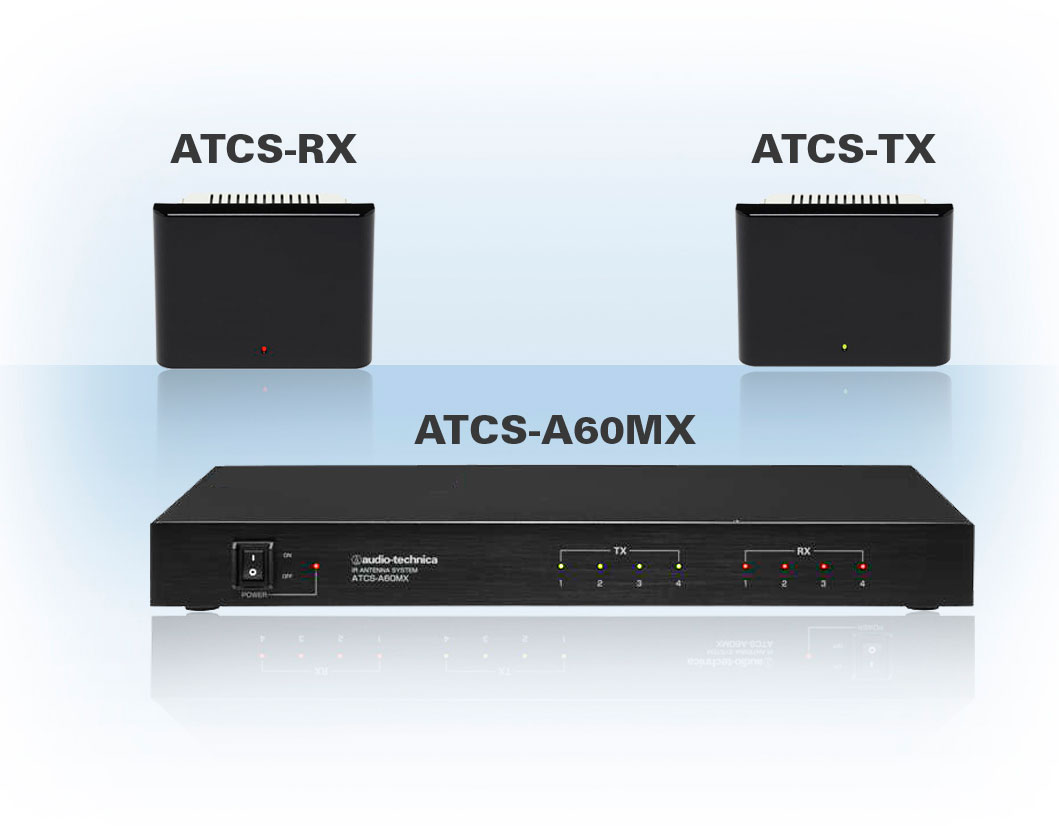

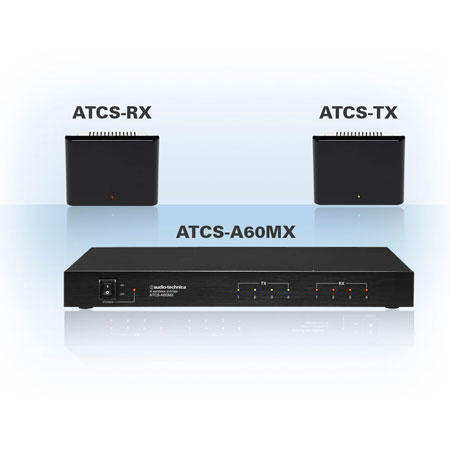

The long throw antenna system is made up of three components;

The ATCS-A60MX mixer,

ATCS-A60RX receiver antenna and

ATCS-A60TX transmitting antenna.

ATCS-A60MX IR transmitter/receiver mixer
. The master antenna mixer can power up 4 transmitter antennas and 4 receiving antennas.
. Infrared transmission keeps the signal in the room. Therefore multiple conference systems can be used in
adjacent rooms and the conference stays secure.
. The ATCS-A60MX includes rack mount adaptors

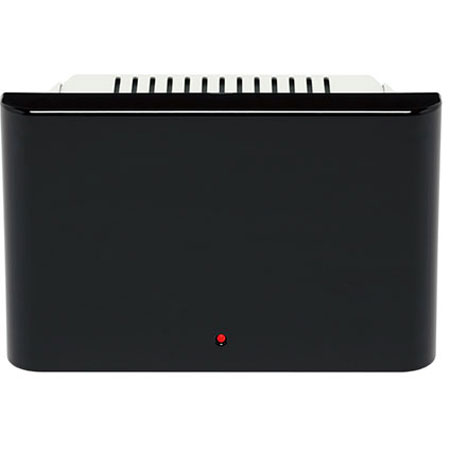

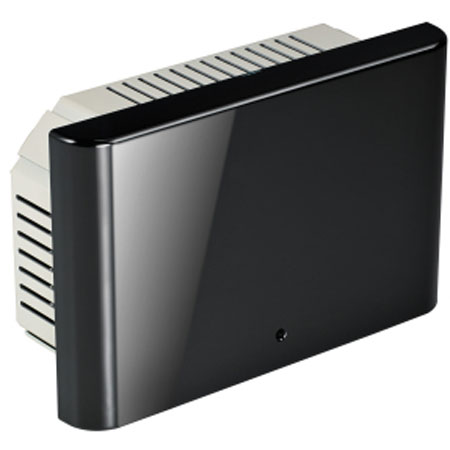

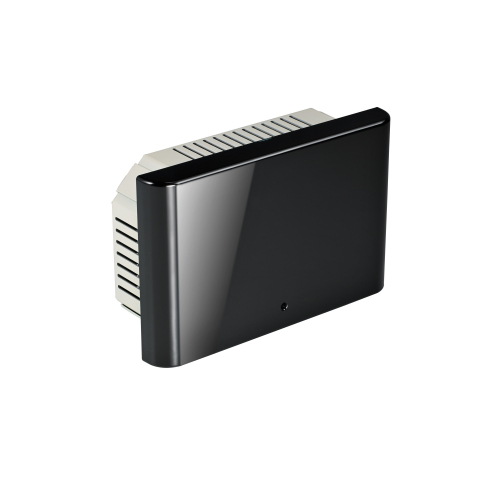

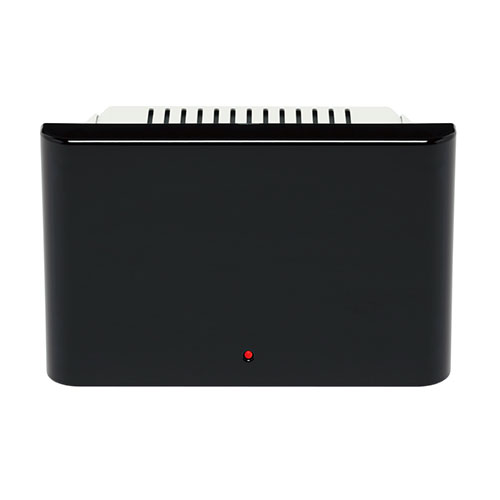

ATCS-A60RX IR Receiving Antenna (green indicator)
. The high-power receiving antenna can work up to 15 meters for large conference rooms or high ceiling
meeting rooms.

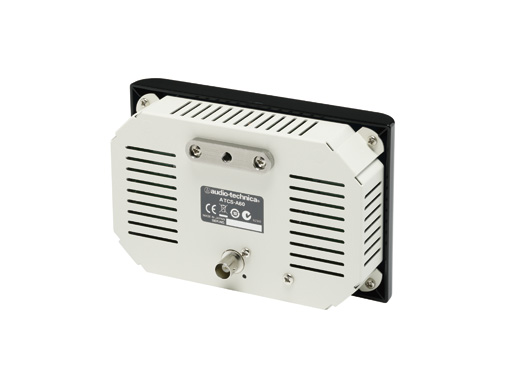

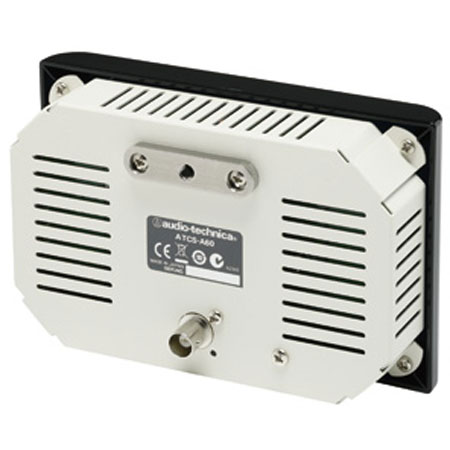

. The A60RX can be stand mounted and wall mounted

ATCS-A60TX IR receiver antenna (red indicator)
. The high-power transmitting antenna can work up to 20 meters for large conference rooms or high ceiling
meeting rooms.
. The A60RX can be stand mounted and wall mounted

Untitled Document

ATCS-A60MX

  • IR transmitting unit terminal: BNC×4(75 ohms)
  • IR receiving unit terminal: BNC×4(75 ohms)
  • I/O terminal: BNC×1(75 ohms)
  • Operating temperature range: 0 to +40C°
  • Power consumption: 50W
  • Power supply: 100 to 240VAC, 50/60 Hz
  • Dimensions: 44 (H) x 420 (W) x 225 (D) mm
  • Weight Approx.: 3.0 kg
  • Accessories: AC cord, Rack-mount adapter x 2, Screw to attach the rack-mount adapter x

ATCS-A60TX ATCS-A60RX

  • Communication method: IR wireless system
  • Operating frequency band: 8 to 10 MHz 1 to 5 MHz
  • IR wavelength: 870 nm
  • Modulation method: Frequency modulation
  • Operating distance*: 20 m (TX) 15 m (RX)
  • Operating temperature range: 0 to 40C°
  • Connecting terminal: BNC jack
  • Power supply: 24V dc supplied from the ATCS-A60MX
  • Dimensions: 44 (H) x 149 (W) x 97 (D) mm
  • Weight: 351 g (TX) 386 g (RX)
