Foot-Stomping Creativity

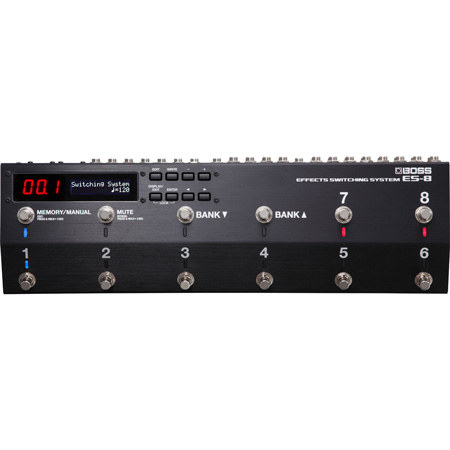

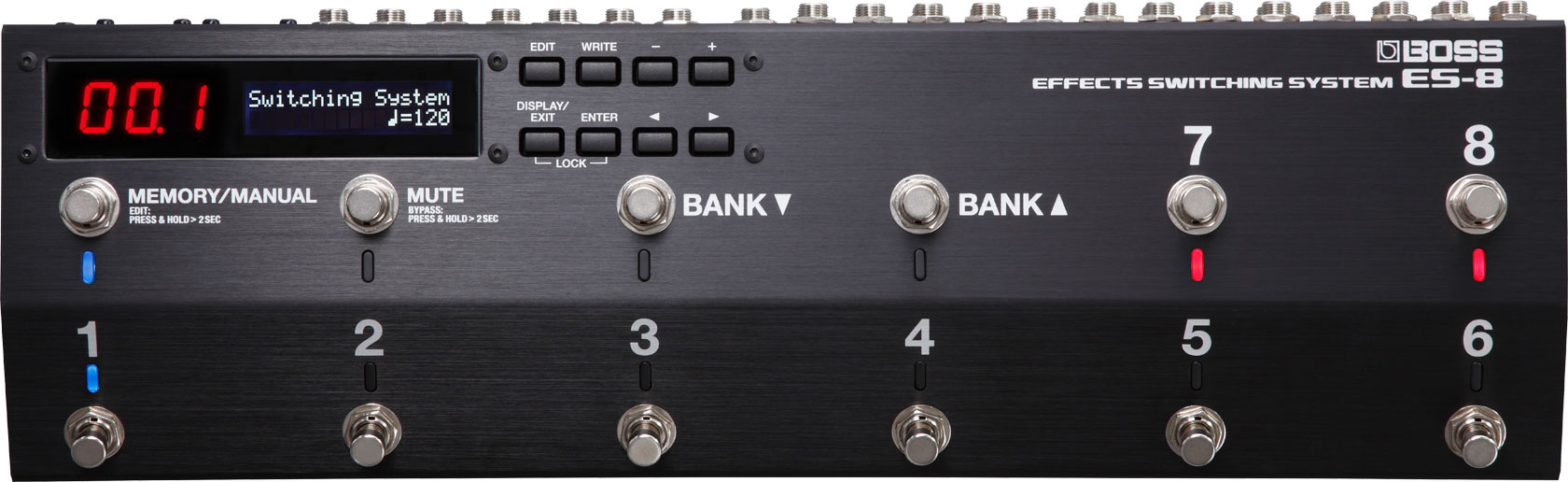

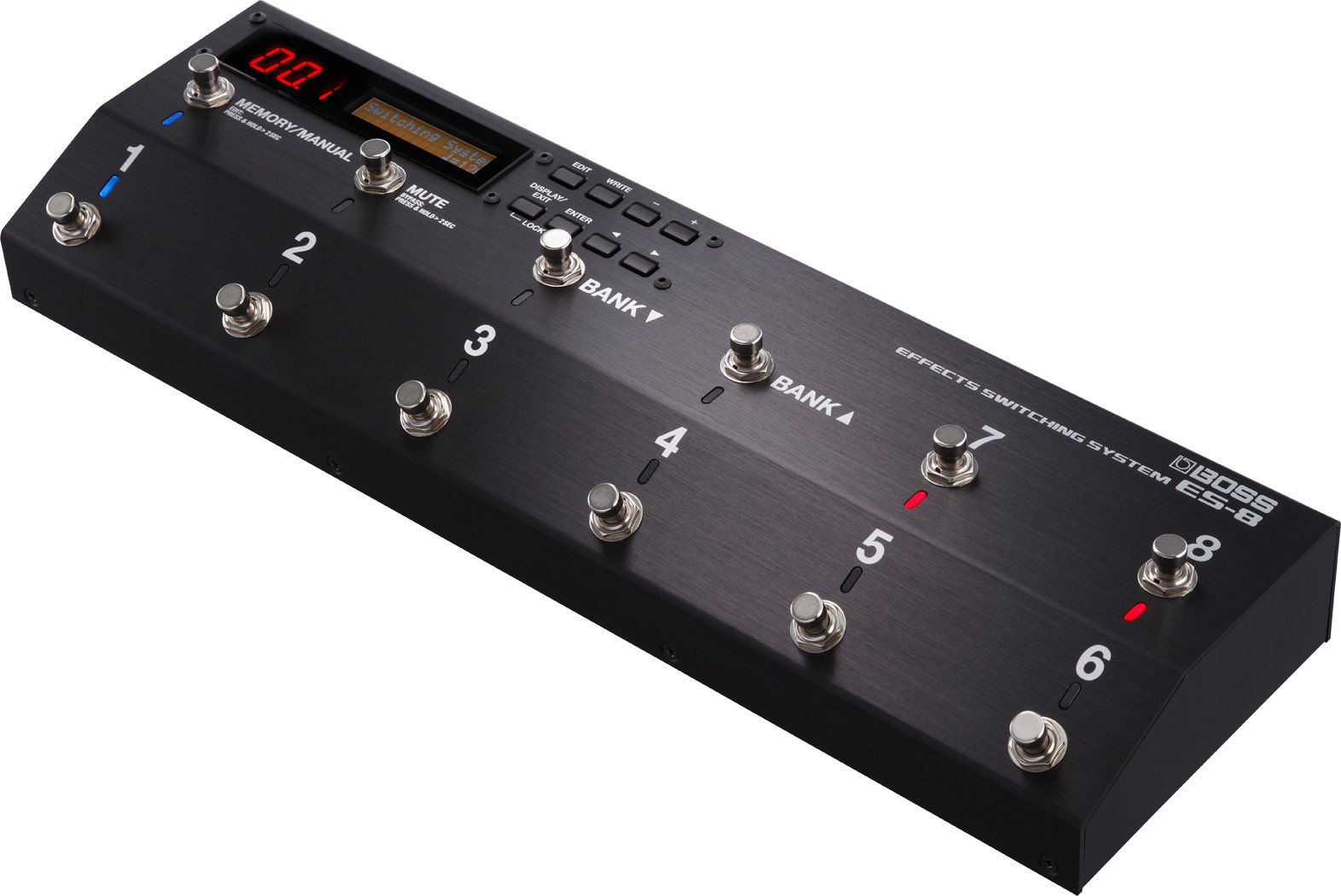

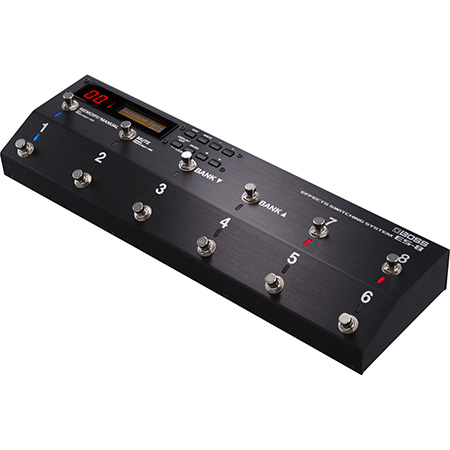

The ES-8 Effects Switching System begins life with a sharp and clear mission: to provide pro and high-end users with cool and creative solutions. The new and innovative ES-8 is a system that represents a major leap "out of the box" from the standard individual stomp box utility. It is a whole new way of providing unprecedented capability without sacrificing sound quality. The ES-8 combines far-reaching flexibility with total freedom of expression. All this, in one cool device.
Not just another utility tool, the ES-8 kicks down the door to unlimited possibilities in the universe of musical expression. From this day on, the use of stomp boxes will never be the same. Using BOSS' advanced technology the ES-8 is designed for spontaneity on the stage. So, go ahead. Jump out of the box. Take the plunge into a whole new world of musical expression. Celebrate the birth of the cool at BOSS with the hot new ES-8 Effects Switching System. It's a total game changer that will take you to places no musician has ever gone before.
Untitled Document

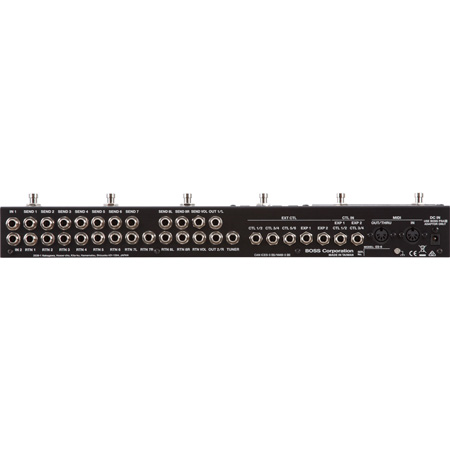

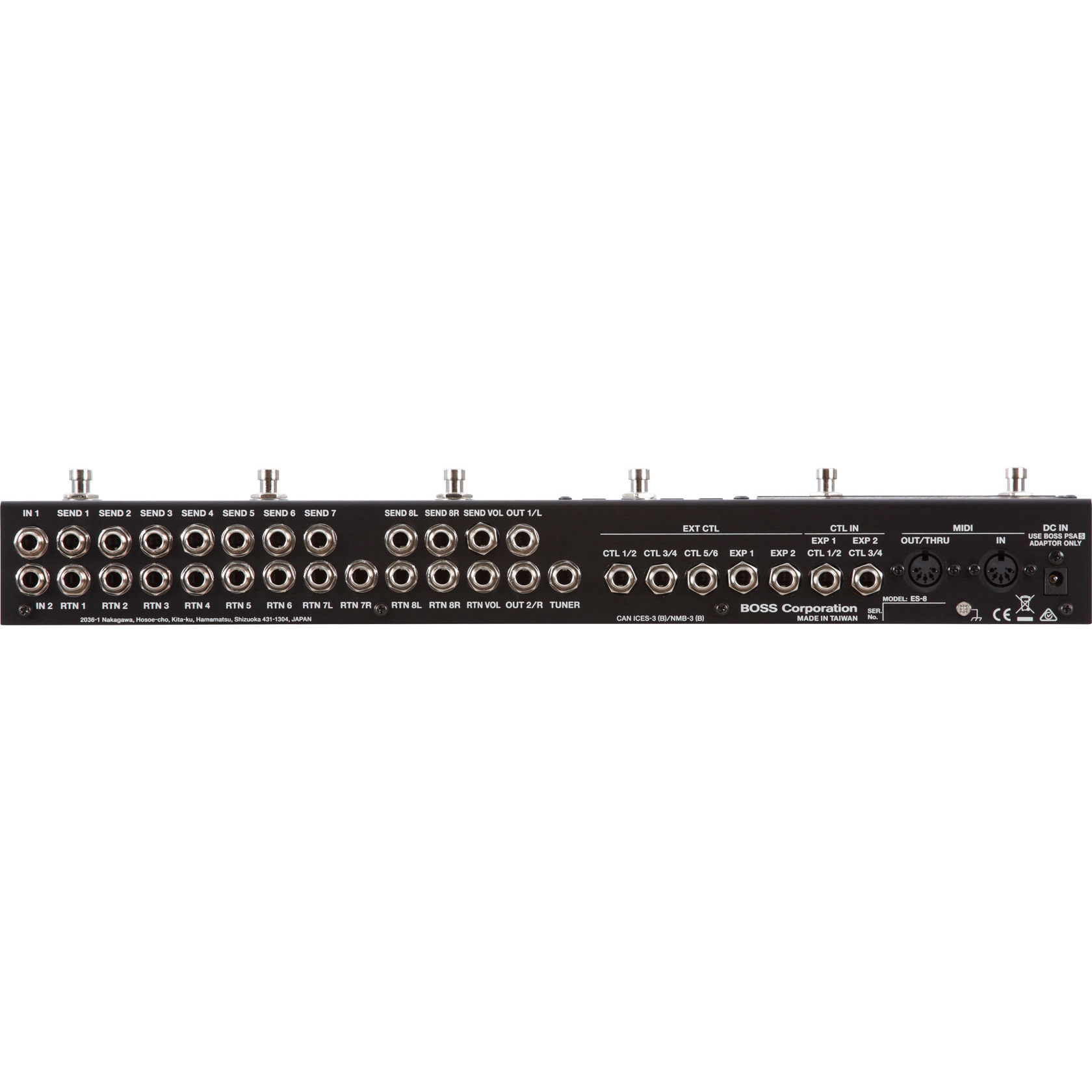

Loops 8 (Effect loop) 1 (Volume loop) Patch Memory 800 Pedals Number switch x 8 BANK switch x 2 MEMORY/MANUAL switch MUTE switch Nominal Input Level IN 1, 2: -10 dBu RTN 1--6, RTN 7L, RTN 7R, RTN 8L, RTN 8R, RTN VOL: -10 dBu Input Impedance IN 1, 2: 1 M ohms Nominal Output Level SEND 1--7, SEND 8L, SEND 8R, SEND VOL, OUT 1/L, OUT 2/R, TUNER: -10 dBu Output Impedance OUT 1/L, OUT 2/R, TUNER: 1 k ohms or greater Recommended Load Impedance 10 k ohms or greater Display 7 segments, 3 characters (LED) 16 characters, 2 lines (backlit LCD) Connectors IN 1, 2 jacks: 1/4-inch phone type SEND 1--7, SEND 8L, SEND 8R, SEND VOL jacks: 1/4-inch phone type RTN 1--6, RTN 7L, RTN 7R, RTN 8L, RTN 8R, RTN VOL jacks: 1/4-inch phone type OUT 1/L, OUT 2/R jacks: 1/4-inch phone type TUNER jack: 1/4-inch phone type EXT CTL CTL 1/2, CTL 3/4, CTL 5/6 jacks: 1/4-inch TRS phone type EXT CTL EXP 1, EXP 2 jacks: 1/4-inch TRS phone type CTL IN EXP 1 CTL 1/2, EXP 2 CTL 3/4 jacks: 1/4-inch TRS phone type MIDI connectors (IN, OUT/THRU) DC IN jack Power Supply AC adaptor Current Draw 400 mA Accessories AC adaptor Owner's manual Leaflet "USING THE UNIT SAFELY" Rubber foot x 5 Screw x 2 Options (sold separately) Footswitch: FS-5U, FS-6, FS-7 Expression pedal: BOSS FV-500L, FV-500H, Roland EV-5 Size and Weight Width 439 mm
17-5/16 inches Depth 137 mm
5-7/16 inches Height 65 mm
2-9/16 inches Weight 2.5 kg
5 lbs 9 oz.
|
