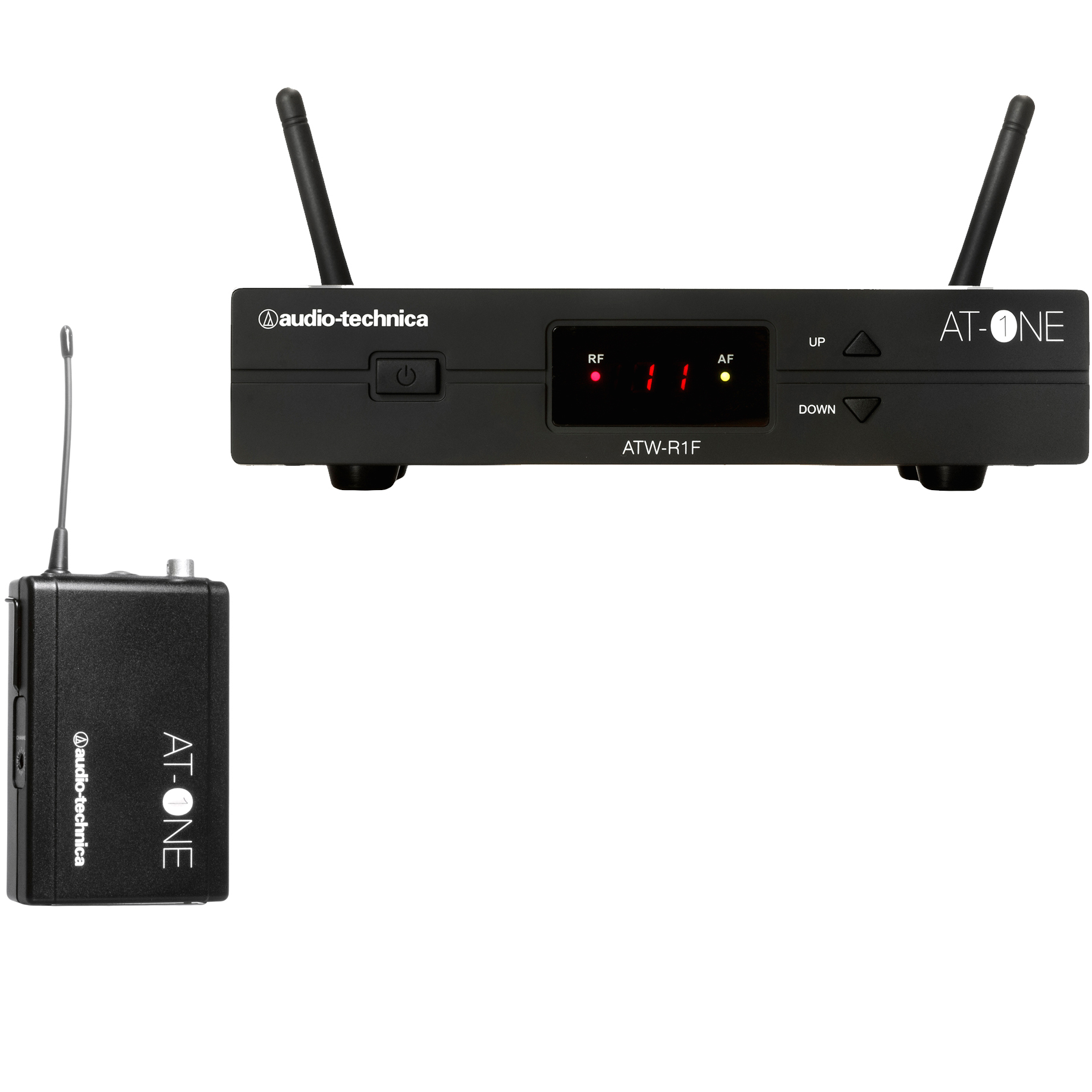

Audio-Technica ATW-11 AT-One Beltpack system
Audio-Technica ATW-11 AT-One Beltpack system
Audio-Technica ATW-11 AT-One Beltpack system
Audio-Technica ATW-11 AT-One Beltpack system





Audio-Technica ATW-11
AT-One Beltpack system



EAN Code: 4961310130749

   Prevedeno uputstvo

Cena (set) :
260.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

Introducing AT-One, Audio-Technica's entry level UHF wireless system.

With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price.

The AT-One's frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11F comes equipped with a sturdy, discreetly designed beltpack, providing 10mW RF output power, damping switch and a battery life of 10 hours. The ATW-13F handheld system features the ATW-T3F cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life. The ATW-11/PF comes equipped with the ATR35cW tie-clip microphone.

The ATW-13F's condenser handheld microphone prevents the possibility of feedback when used in venues with induction loops installed.

Product Features

  • 2 x 4 Channel Frequency Plan
  • Clear Receiver Display
  • Rack-Mountable Design
  • Intuitive Receiver and Transmitter Controls
  • RF Indicator Light
  • Sturdy But Stylish Build Quality
Untitled Document
Overall System
Frequency range:
824 - 831 MHz, 863-865 MHz
Modulation mode:
FM
Number of frequencies:
2x 4-frequencies
Operating range:
60m, typical
Frequency response:
60 Hz - 16 kHz
Frequency stability:
+/- 0.005%, Phase lock loop frequency control
Receiver Specifications
Receiving system:
Antenna switching diversity
Image rejection:
55dB minimum
Dynamic range:
HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity:
10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion:
<1% - 20 kHz deviation @ 1 kHz
Level control:
Mic / Line (0 / -20dB)
Antenna Input:
BNC type, 50O - BIAS voltage 12V DC 100mA each
Audio Output:
Unbalanced -2dBV, Balanced 4dBV
Output connectors:
Unbalanced: 6.3 mm mono jack, Balanced: XLRM-type
Dimensions:
200 mm x 42 mm x 122 mm (W x H x D)
Weight:
418 g without accessories
Accessories included:
AC Adapter, Antennas, Rack mount adapter
Optional System Accessory:
AT8677 Dual rack mount kit
Body-Pack Transmitter
RF Output power:
10 mW
Spurious Emissions:
Following national regulations
Input connections:
Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Batteries (not included):
Two 1.5V AA alkaline
Battery Life:
10 hours - depending on battery type and use pattern
Dimensions:
66 mm x 98 mm x 22 mm (W x H x D)
Weight:
71 g without batteries
Handheld Transmitter
RF Output power:
10 mW
Spurious Emissions:
Following national regulations
Microphone Element:
Condenser Cardioid
Batteries (not included):
Two 1.5V AA alkaline
Battery Life:
10 hours - depending on battery type and use pattern
Dimensions:
268 mm long - 52 mm (diameter)
Weight:
227 g without batteries
Accessory included:
Stand clamp
