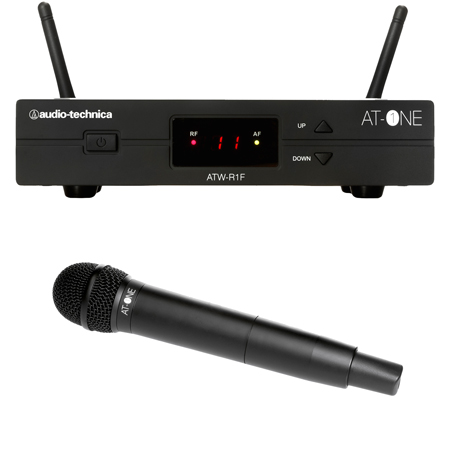

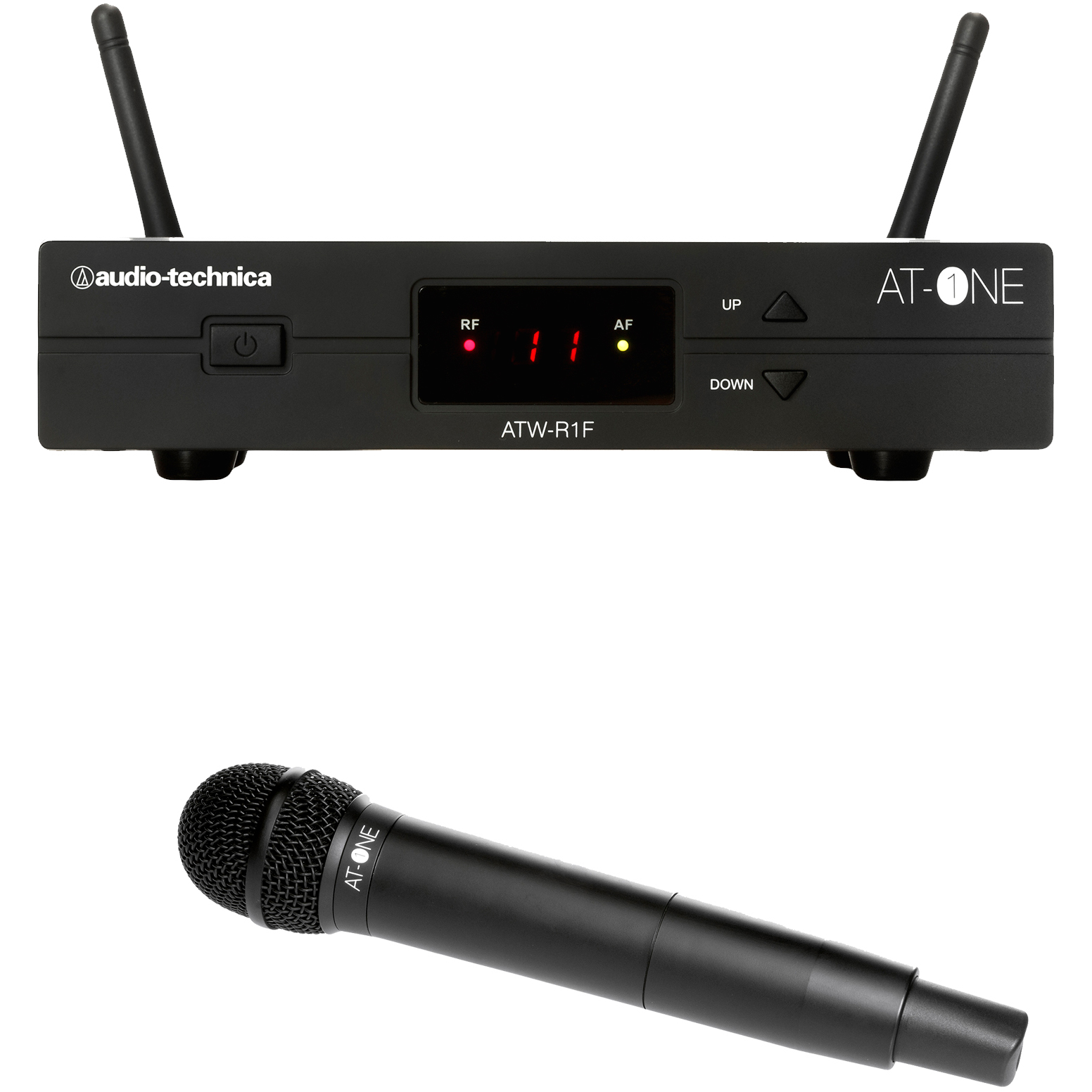

Audio-Technica ATW-13 AT-One Handheld transmitter system
Audio-Technica ATW-13 AT-One Handheld transmitter system
Audio-Technica ATW-13 AT-One Handheld transmitter system
Audio-Technica ATW-13 AT-One Handheld transmitter system





Audio-Technica ATW-13
AT-One Handheld transmitter system



EAN Code: 4961310130756
Cena (set) :
280.00 Eur

Besplatna dostava
za iznose preko 100eur


  • Opis
  • Specifikacije
  • oprema
  • AUDIO/Video
  • download
  • komentari
Untitled Document

ATw-13f AT-ONE ENTRY LEVEL UHF SYSTEM, THE BEST EQUIPPED ON THE MARKET

Introducing AT-One, Audio-Technica's entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One's frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-13F handheld system features the ATW-T3F cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life.

  • Designed for quick and easy use
  • Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
  • The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
  • Users can choose up to 4 channels in a group
  • The ATW-13F system is equipped with a cardioid condenser handheld transmitter
  • RF transmission power 10mW
  • Up to 10 hours' battery life with 2 x 1.5V AA batteries
  • RF Indicator light
  • Robust construction from high quality components
  • Delivered in a transport case with a rack mount kit and detachable antennas

"2 X 4 Channels"

AT-One's frequency plan is divided into two groups, each with 4 channels available, one in the range of authorized European frequencies and the other in the duplex gap. Users can choose up to 4 channels in a group.

"rf light indicator"

The display on the half-rack receiver clearly indicates both the RF and AF levels.

"12v power"

The ATW-R1F receiver delivers a voltage of 12V / 100 mA for powering an ATW-B80 booster antenna, active splitters, an antenna combiner or any other active component.



Specifikacije Audio-Technica ATW-13HH2
Overall System
0
Operating Frequencies
24 - 831 MHz, 863 - 865 MHz
Number Of Channels
2 x 4 frequencies
Frequency Stability
+/- 0.005%, Phase lock loop frequency control
Modulation Mode
FM
Frequency Response
60 Hz - 16 kHz
Operating Range
60m, typical
Receiver
0
Receiving System
Antenna switching diversity
Image Rejection
55dB minimum
Dynamic Range
HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity
10dBľV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion
<1% - 20 kHz deviation @ 1 kHz
Audio Output Unbalanced
-2dBV
Audio Output Balanced
4dBV
Output Connectors (Microphone)
Balanced: XLRM-type
Output Connectors (Instrument)
Unbalanced: 6.3 mm mono jack
Maximum Output Level
Mic / Line (0 / -20dB)
Antenna Input
BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions
200 mm x 42 mm x 122 mm (W x H x D)
Weight
418 g without accessories
Accessories Included
AC Adapter, Antennas, Rack mount adapter, protective carrying case
Handheld Transmitter
0
RF Power Output
10 mW
Spurious Emissions
Following national regulatios
Microphone Element
Condenser Cardioid
Battery Type
Two 1.5V AA alkaline
Battery Life
10 hours - depending on battery type and use pattern
Dimensions
268 mm long - 52 mm (diameter)
Accessories Included
Stand clamp
